LCAF1-38H-X
CONN TERM RECT TONG 1 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

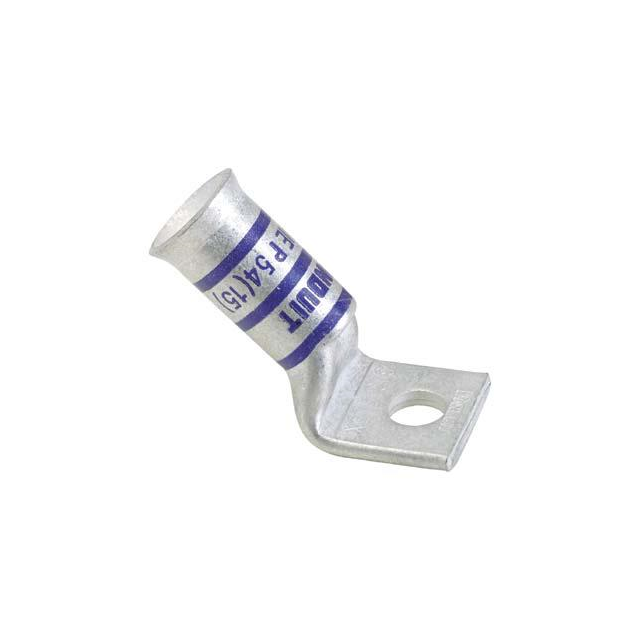

Panduit Corp Pan-Lug™ LCAF1-38H-X offers a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.120". The termination method is crimp, utilizing a barrel connection. The overall width of the outer edges is 0.800" (20.32mm). Mounting is facilitated via a free hanging (in-line) or 45° angle configuration. This terminal connector is suitable for applications in power distribution and electrical infrastructure. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
