LCAF1-38F-X
CONN TERM RECT TONG 1 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

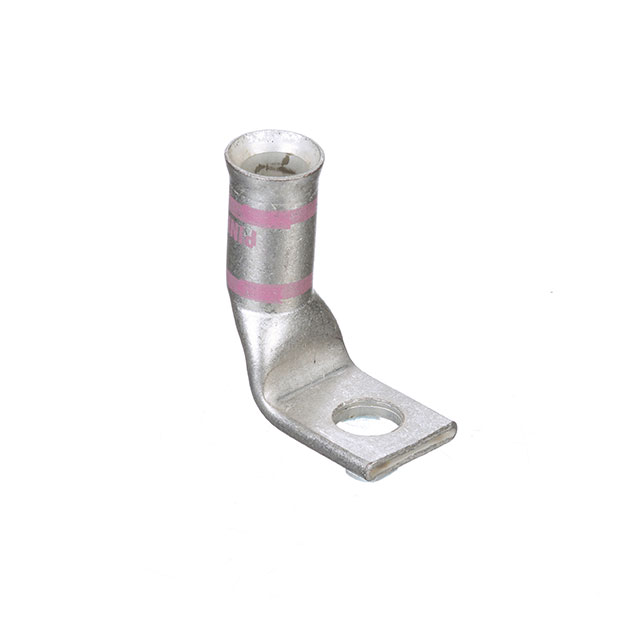

Panduit Corp Pan-Lug™ LCAF1-38F-X offers a robust solution for wire termination. This non-insulated, rectangular tongue terminal connector is designed for 1 AWG wire, featuring a 3/8 stud size for secure connection. The terminal style is single stud hole with a barrel termination requiring crimping. Key dimensions include a tab thickness of 0.120" (3.05mm) and an outer edge width of 0.800" (20.32mm). This component is suitable for various industrial applications, including power distribution and electrical panel assembly. The mounting type can accommodate free hanging (in-line) or right-angle configurations. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
