LCAF1-14H-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

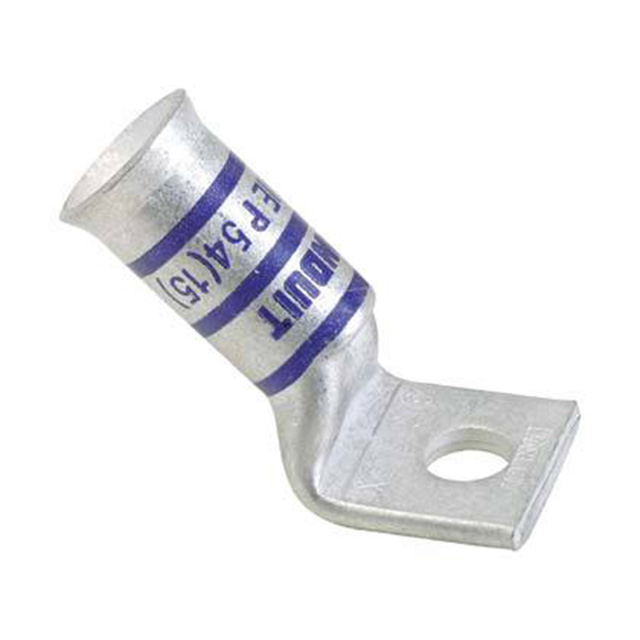

Panduit Corp Pan-Lug™ LCAF1-14H-X is a non-insulated, rectangular tongue terminal connector designed for crimp termination of 1 AWG wire. Featuring a single stud hole with a 1/4" stud size and a tab thickness of 0.120" (3.05mm), this component offers a robust connection solution. The overall width of the terminal is 0.800" (20.32mm). This Panduit Corp terminal is suitable for free-hanging (in-line) mounting or can be affixed at a 45° angle. Commonly utilized in power distribution and high-current applications, the LCAF1-14H-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
