LCAF1-14F-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

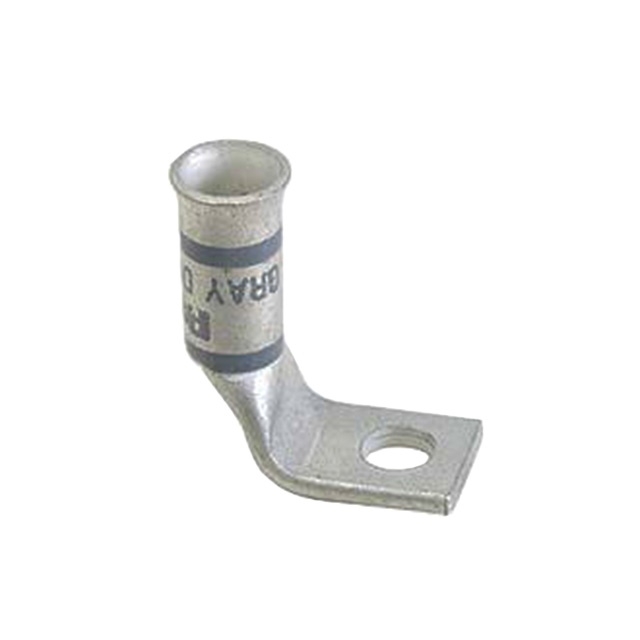

Panduit Corp Pan-Lug™ LCAF1-14F-X is a non-insulated, single stud hole terminal with a rectangular tongue. This component is designed for crimp termination of 1 AWG wire. Featuring a 1/4 stud size and a tab thickness of 0.120 inches, it offers a robust connection for demanding applications. The overall width of the terminal is 0.800 inches. This Panduit Corp lug is commonly utilized in power distribution and industrial automation systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
