LCAF1/0-56F-X
CONN TERM RECT TONG 1/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

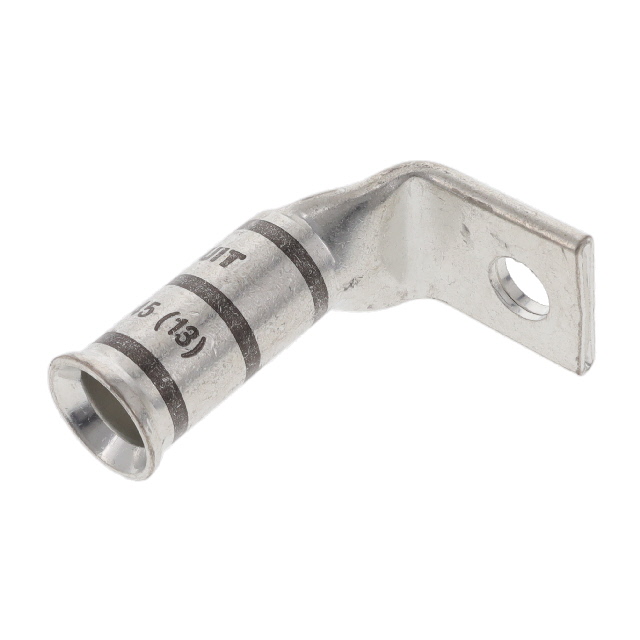

Panduit Corp Pan-Lug™ LCAF1-0-56F-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a single stud hole termination for a 5/16" stud and accommodates 1/0 AWG wire, utilizing a barrel for crimp termination. The terminal boasts a 0.130" tab thickness and an overall width of 0.850". Its mounting type offers flexibility with options for free hanging (in-line) or right-angle configurations. This reliable terminal is commonly employed in industrial power distribution, automotive, and energy sectors where secure and durable wire termination is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
