LCAF1/0-38H-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

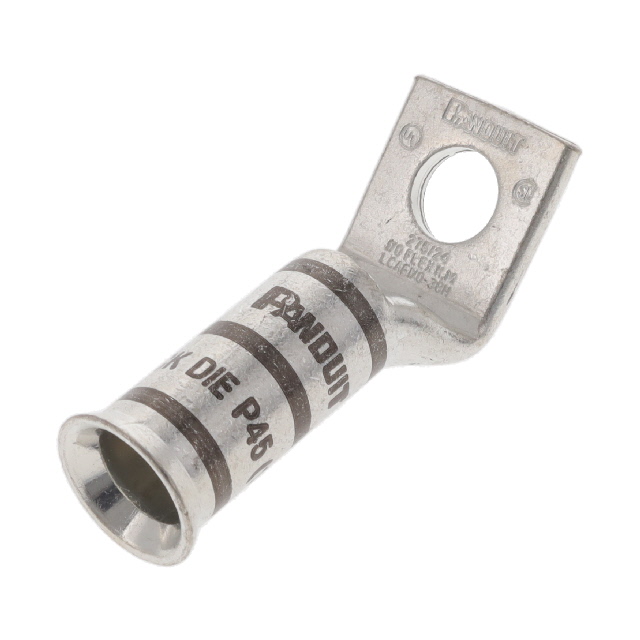

Panduit Corp Pan-Lug™ LCAF1-0-38H-X is a non-insulated, rectangular tongue terminal connector designed for 1/0 AWG wire. This component features a 3/8 stud size for secure mounting and a tab thickness of 0.130 inches. Its termination method is crimp, utilizing a barrel connection for reliable electrical contact. The terminal style is a single stud hole, and it offers a mounting type that supports both free-hanging (in-line) and 45° angle configurations. The overall width across the outer edges is 0.850 inches. This Panduit Corp Pan-Lug™ terminal is suitable for applications in the industrial and telecommunications sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
