LCA8-56H-L
CONN TERM RECT TONG 8 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

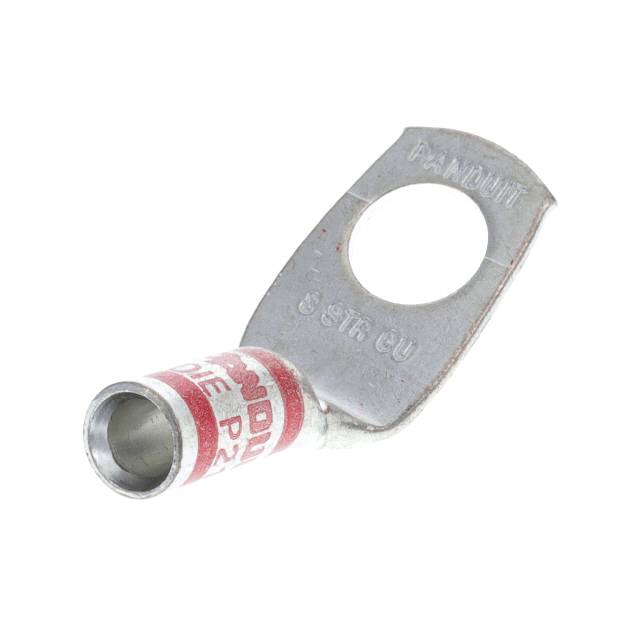

Panduit Corp Pan-Lug™ LCA8-56H-L is a non-insulated, rectangular tongue terminal connector designed for 8 AWG wire. Featuring a single stud hole with a 5/16" stud size and a tab thickness of 0.050" (1.27mm), this component utilizes a crimp barrel termination method. The outer edges measure 0.560" (14.22mm) in width. The LCA8-56H-L offers a free hanging (in-line) mounting type with a 45° angle option. This terminal connector is commonly found in power distribution and electrical connection applications across various industries including industrial automation, telecommunications, and renewable energy. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
