LCA750-38-6
COPPER COMPRESSION LUG, 1 HOLE,Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

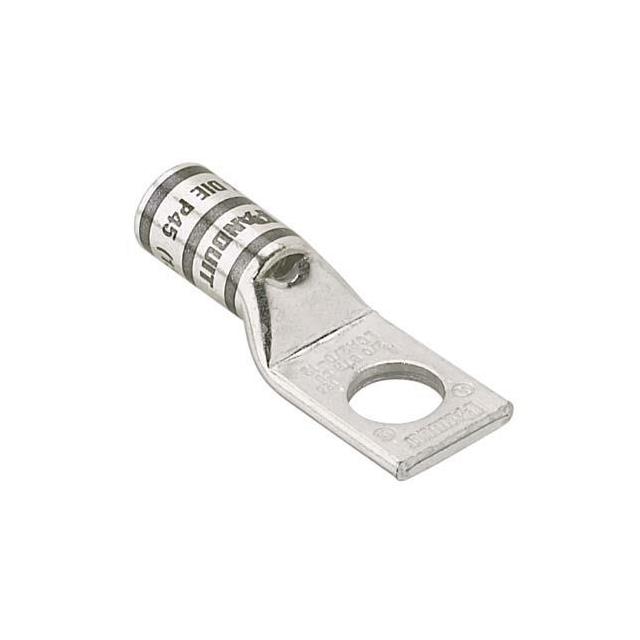

Panduit Corp Pan-Lug™ LCA750-38-6 is a non-insulated copper compression lug designed for robust electrical connections. This single-stud terminal features a rectangular tongue termination and a barrel for crimp-style wire attachment. Engineered for 750MCM (kcmil) wire gauge, it accommodates a 3/8 stud size with a tab thickness of 0.260 inches. The lug has an overall length of 3.850 inches and an outer edge width of 1.890 inches, facilitating a secure and reliable connection in a free-hanging (in-line) mounting configuration. This component is commonly utilized in power distribution, industrial automation, and renewable energy systems where high-current capacity and durability are paramount. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.850"" (97.79mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
