LCA600-78-6
CONN TERM RECT TONG 600 MCM #7/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

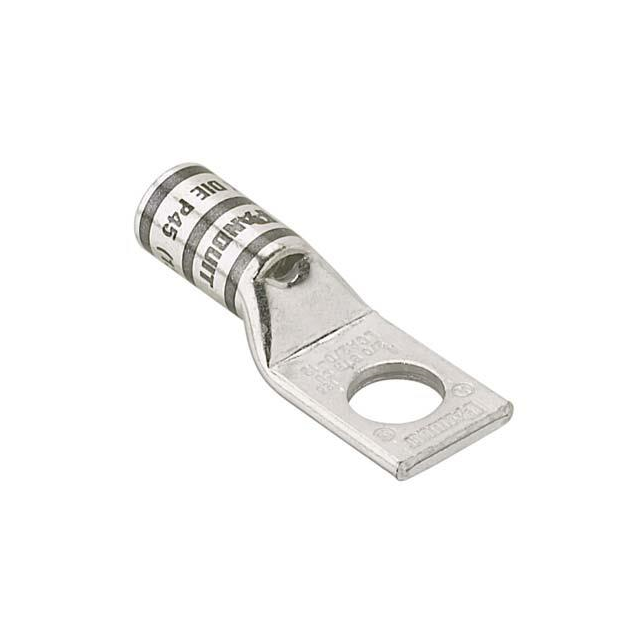

Panduit Corp Pan-Lug™ LCA600-78-6 is a non-insulated, rectangular tongue terminal connector designed for heavy-duty power applications. This terminal accommodates wire sizes up to 600MCM (kcmil) and features a 7/8 stud size with a tab thickness of 0.260 inches. The overall length is 4.190 inches, with an outer width of 1.700 inches. Termination is achieved via a crimp connection to the barrel. The mounting type is free hanging (in-line), suitable for robust electrical connections in industrial power distribution, renewable energy systems, and heavy equipment manufacturing. This component is supplied in bulk packaging and is green in color.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 600MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 7/8 Stud |
| Length - Overall | 4.190"" (106.43mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.700"" (43.18mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
