LCA600-12H-6
CONN TERM RECT TONG 600 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

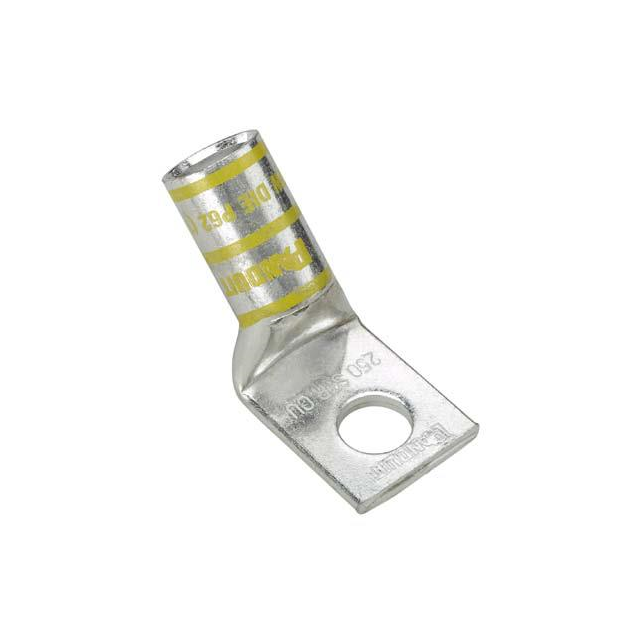

Panduit Corp Pan-Lug™ LCA600-12H-6 is a non-insulated, single stud hole rectangular tongue terminal. Designed for terminating 600 MCM (kcmil) conductors via a crimp barrel, this component features a 1/2 stud size and a tab thickness of 0.260 inches (6.60mm). The overall width of the outer edges is 1.700 inches (43.18mm). Mounting options include free hanging (in-line) or at a 45° angle. This Panduit Corp terminal is commonly employed in power distribution, heavy equipment, and industrial automation applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 600MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.700"" (43.18mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
