LCA500-78H-6
CONN TERM RECT TONG 500 MCM #7/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

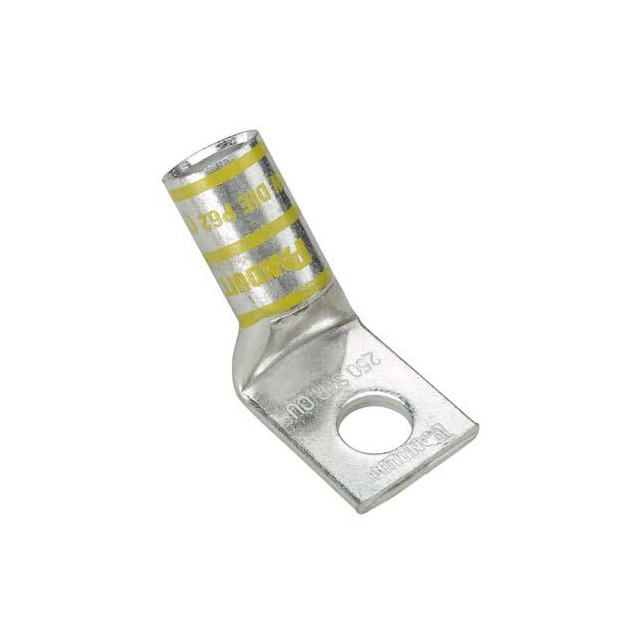

Panduit Corp Pan-Lug™ LCA500-78H-6 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This lug accommodates 500 MCM (kcmil) wire gauge and features a 7/8 stud size with a 0.220" tab thickness. The terminal style is single stud hole, with a barrel termination requiring a crimp. Its overall width is 1.540". The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle. This component is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 7/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
