LCA500-78-6
CONN TERM RECT TONG 500 MCM #7/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

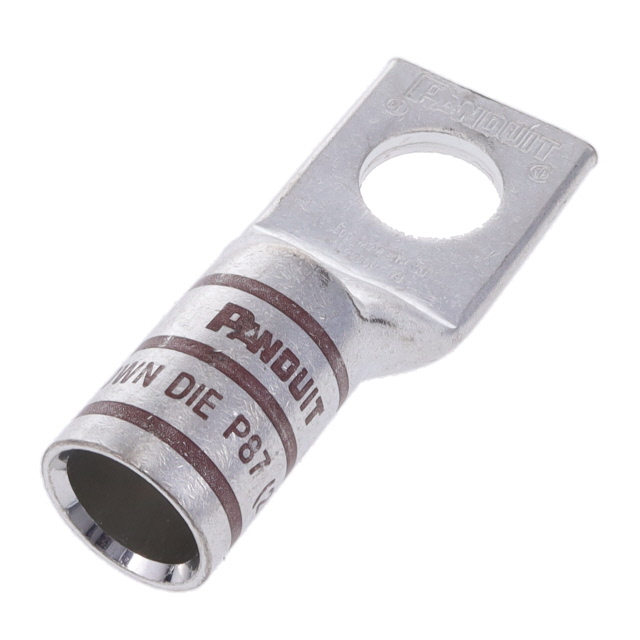

Panduit Corp Pan-Lug™ LCA500-78-6 is a non-insulated, rectangular tongue terminal connector designed for heavy-duty electrical applications. This component accommodates a 500MCM (kcmil) wire gauge and features a single stud hole with a 7/8 stud size. The overall length is 4.140 inches (105.16mm) with an outer width of 1.540 inches (39.12mm) and a tab thickness of 0.220 inches (5.59mm). Termination is achieved via crimp barrel. The LCA500-78-6 is suitable for in-line, free-hanging mounting configurations. This terminal is commonly utilized in power distribution, industrial automation, and utility sectors where robust and reliable electrical connections are paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 7/8 Stud |
| Length - Overall | 4.140"" (105.16mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
