LCA500-58F-6
CONN TERM RECT TONG 500 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

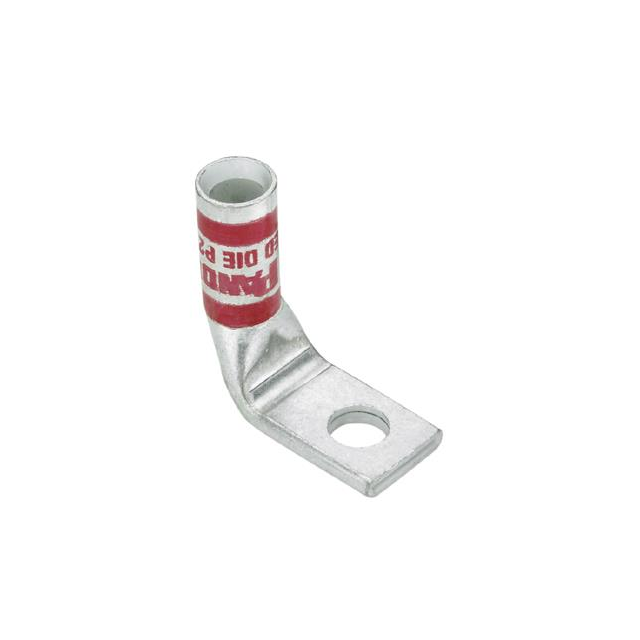

Panduit Corp Pan-Lug™ LCA500-58F-6 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a 5/8 stud size and accommodates wire gauges up to 500 kcmil. The terminal style is a single stud hole with a barrel termination optimized for crimping. Key dimensions include an outer edge width of 1.540" (39.12mm) and a tab thickness of 0.220" (5.59mm). Mounting options include free hanging (in-line) and right angle configurations. This terminal is commonly utilized in power distribution, heavy equipment manufacturing, and industrial automation sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
