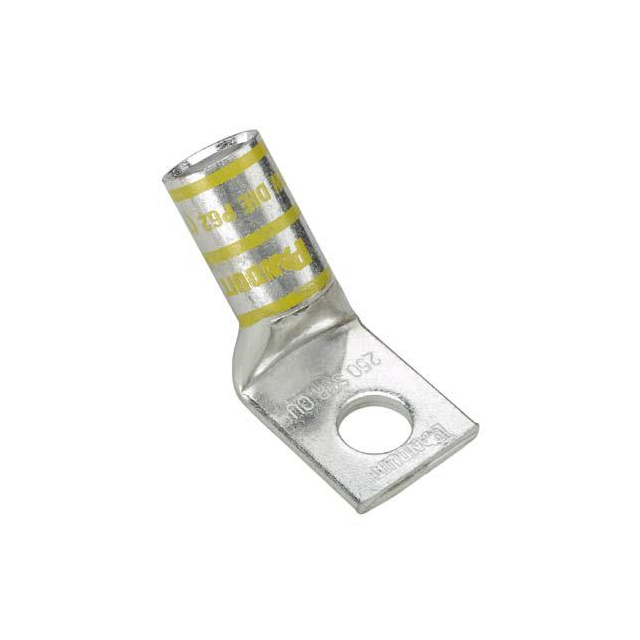

LCA500-34H-6
CONN TERM RECT TONG 500 MCM #3/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp's Pan-Lug™ series LCA500-34H-6 is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component supports a wire gauge of 500 MCM (kcmil) and features a 3/4 stud size with a tab thickness of 0.220" (5.59mm). The terminal style is a single stud hole, and termination is achieved via crimp to a barrel. With an overall width of 1.540" (39.12mm), it offers a secure connection point for high-current applications. Mounting options include free hanging (in-line) configurations as well as a 45° angle. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and heavy equipment sectors where reliable termination of large gauge conductors is critical. The LCA500-34H-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
