LCA500-34-6
CONN TERM RECT TONG 500 MCM #3/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

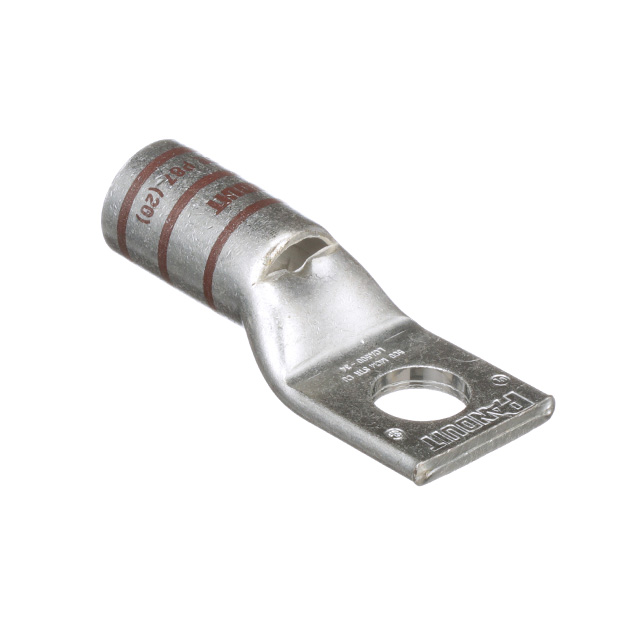

Panduit Corp Pan-Lug™ LCA500-34-6 is a non-insulated, rectangular tongue terminal connector designed for 500 MCM (kcmil) wire. Featuring a single 3/4 stud hole for mounting, its crimp termination ensures a secure barrel connection. The overall length is 3.890 inches (98.81mm) with an outer width of 1.540 inches (39.12mm) and a tab thickness of 0.220 inches (5.59mm). This component is suitable for free-hanging (in-line) applications. Its robust construction and specifications make it ideal for demanding power distribution and high-current applications across industrial and utility sectors. Packaged in bulk, the LCA500-34-6 offers reliable termination for heavy-gauge conductors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/4 Stud |
| Length - Overall | 3.890"" (98.81mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
