LCA500-1H-6
CONN TERM RECT TONG 500 MCM #1Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

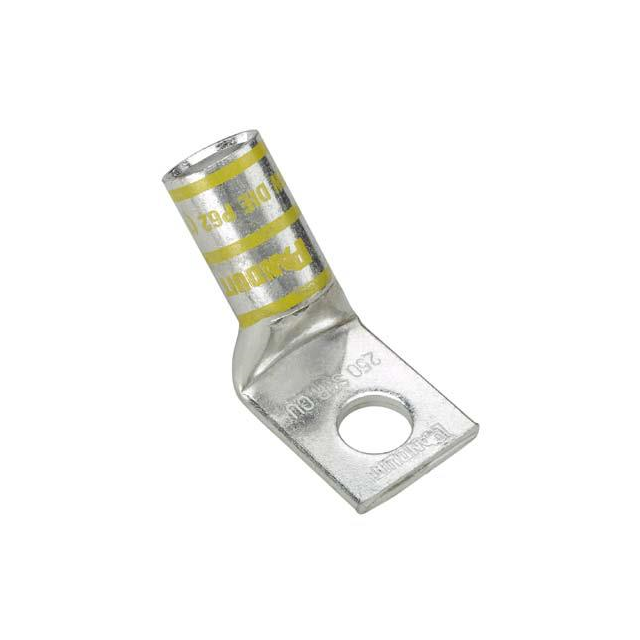

Panduit Corp Pan-Lug™ LCA500-1H-6 is a non-insulated, rectangular tongue terminal connector designed for crimp termination. This component accommodates 500 MCM (kcmil) wire gauge and features a single stud hole with a 1 Stud ( Stud Size parameter). The overall width of the terminal is 1.540" (39.12mm) with a tab thickness of 0.220" (5.59mm). Mounting options include free-hanging (in-line) or at a 45° angle. This terminal is suitable for applications in the power distribution and electrical infrastructure industries. The LCA500-1H-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
