LCA500-1F-6
CONN TERM RECT TONG 500 MCM #1Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

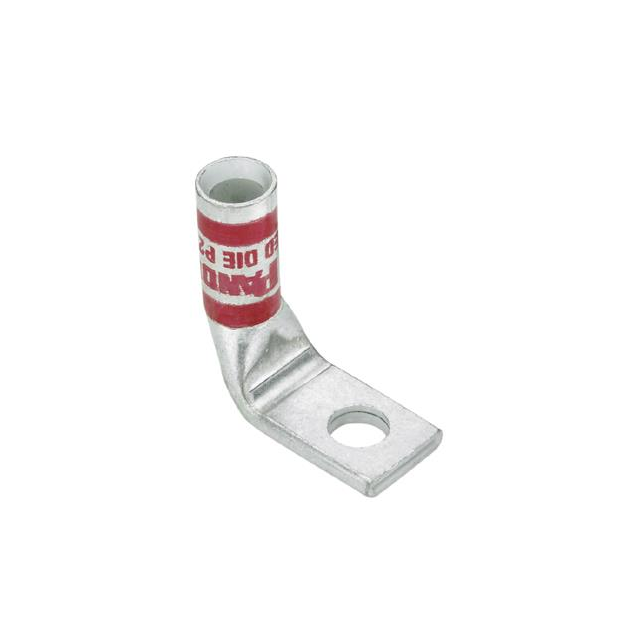

Panduit Corp Pan-Lug™ LCA500-1F-6 is a non-insulated, rectangular tongue terminal connector designed for crimp barrel termination. This component is engineered for 500 MCM (kcmil) wire gauge with a single stud hole. It features a rectangular tongue terminal style and a stud/tab size of 1 Stud, with a tab thickness of 0.220" (5.59mm) and an outer width of 1.540" (39.12mm). The mounting type is suitable for free hanging (in-line) or right angle configurations. This terminal connector is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing. It is supplied in bulk packaging with a brown color designation.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
