LCA400-58H-6
CONN TERM RECT TONG 400 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

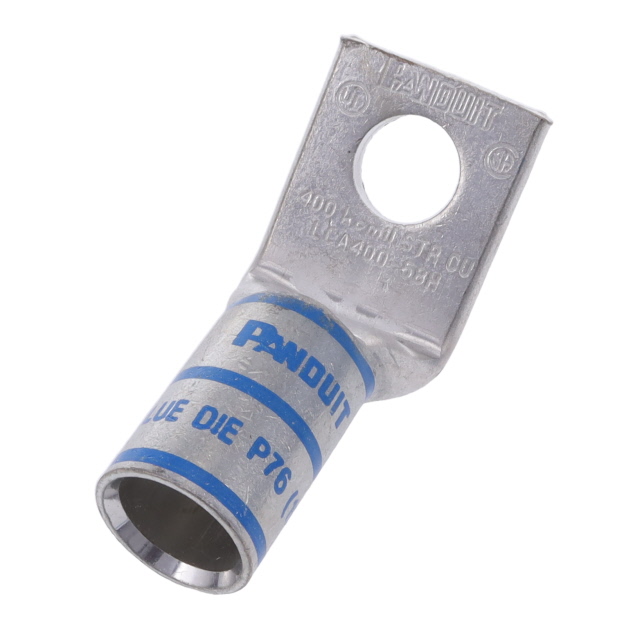

The Panduit Corp LCA400-58H-6 is a Pan-Lug™ series rectangular tongue terminal connector designed for robust electrical connections. This non-insulated component features a 5/8 stud size and accommodates 400MCM (kcmil) wire gauge. The terminal style is a single stud hole with a barrel termination requiring a crimp connection. Key dimensions include a tab thickness of 0.180" (4.57mm) and an outer edge width of 1.390" (35.31mm). Mounting options include free hanging (in-line) and a 45° angle configuration. This terminal is typically utilized in high-power industrial and utility applications where reliable termination of large gauge conductors is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
