LCA400-58F-6
CONN TERM RECT TONG 400 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

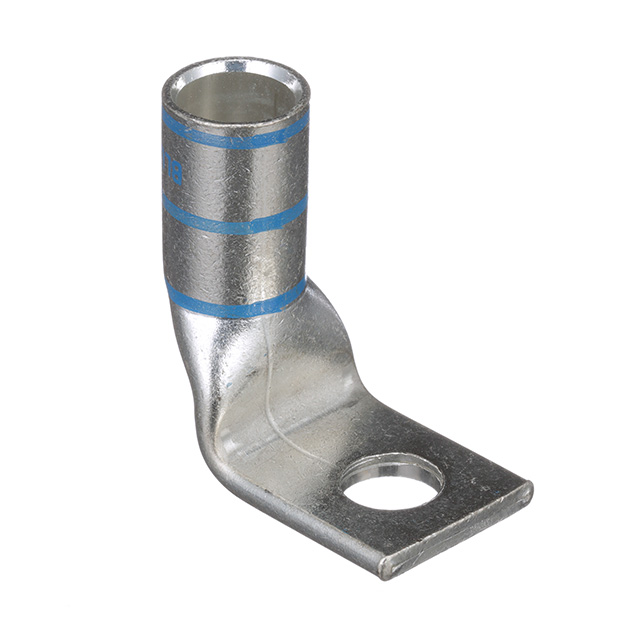

Panduit Corp Pan-Lug™ LCA400-58F-6 is a non-insulated, single stud hole terminal connector featuring a rectangular tongue. Designed for high-capacity applications, this component accommodates 400 MCM wire gauge and terminates via a crimp barrel. It offers a 5/8 stud size and a tab thickness of 0.180 inches (4.57mm), with an outer width of 1.390 inches (35.31mm). The LCA400-58F-6 supports both free hanging (in-line) and right-angle mounting types. This terminal is extensively utilized in power distribution, industrial automation, and renewable energy systems where robust and reliable electrical connections are paramount. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
