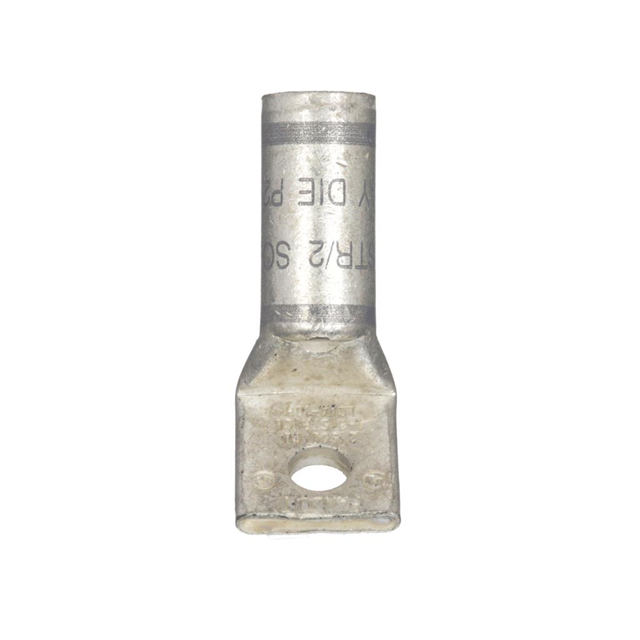

LCA4-10H-L
CONN TERM RECT TONG 2-4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCA4-10H-L is a non-insulated, rectangular tongue, single stud hole terminal connector designed for crimp barrel termination. This component is engineered for wire gauges ranging from 2 to 4 AWG, accommodating a #10 stud size with a tab thickness of 0.090 inches (2.29mm). The terminal features a free-hanging (in-line) mounting style with an optional 45° angle capability, offering flexibility in installation. Its outer width measures 0.550 inches (13.97mm). This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and renewable energy sectors where robust and reliable electrical connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
