LCA4/0-38-C
CONN TERM RECT TONG 4/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

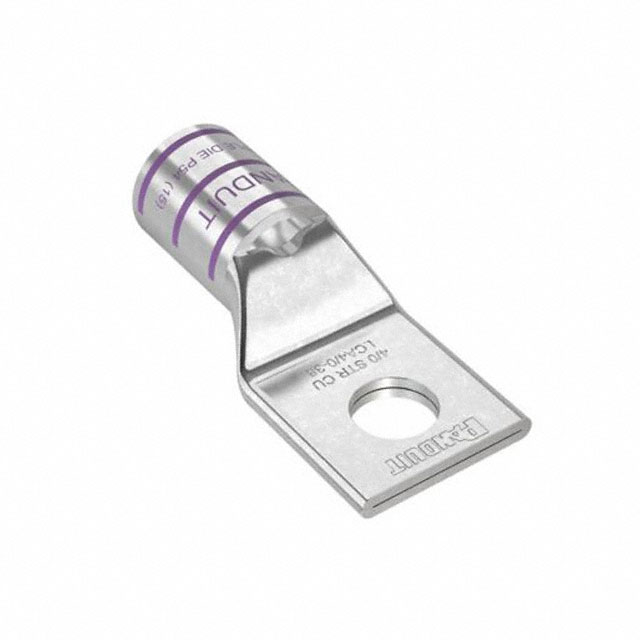

Panduit Corp Pan-Lug™ LCA4-0-38-C is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4/0 AWG wire with a 3/8 stud size and a 0.140" tab thickness. The overall length is 2.440 inches (61.98mm) with an outer edge width of 1.060 inches (26.92mm). Featuring a single stud hole and a barrel termination for crimp applications, this terminal is suitable for free hanging (in-line) mounting. It is supplied in bulk packaging and is utilized in industries requiring high-amperage connections, such as power distribution and heavy industrial equipment.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.440"" (61.98mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
