LCA350-58F-X
CONN TERM RECT TONG 350 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

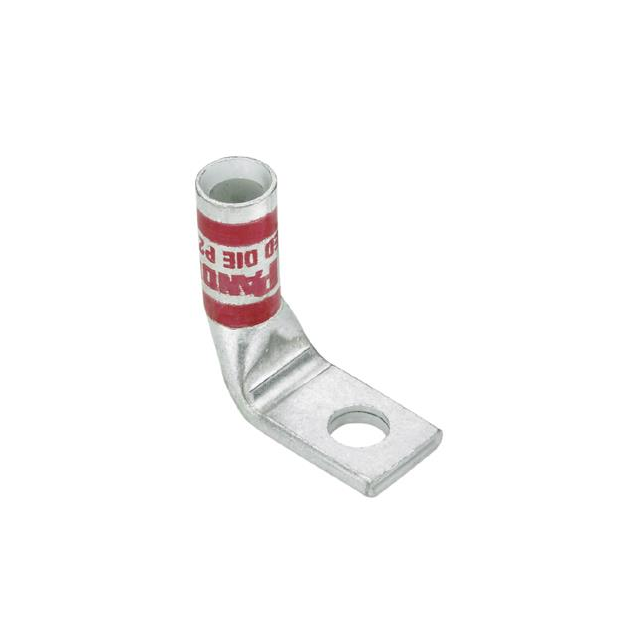

Panduit Corp Pan-Lug™ LCA350-58F-X is a non-insulated, rectangular tongue terminal connector designed for high-power applications. This component features a 5/8 stud size and a 350MCM (kcmil) wire gauge capacity, accommodating a single stud hole for secure termination. The terminal style is a rectangular tongue with a barrel termination, suitable for crimp connections. Key dimensions include a width of 1.280" (32.51mm) and a tab thickness of 0.170" (4.32mm). Mounting is supported in free hanging (in-line) and right angle configurations. This terminal is utilized in industries such as power distribution, industrial automation, and renewable energy systems where robust and reliable electrical connections are critical. The LCA350-58F-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Single Stud Hole |
