LCA300-58H-X
CONN TERM RECT TONG 300 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

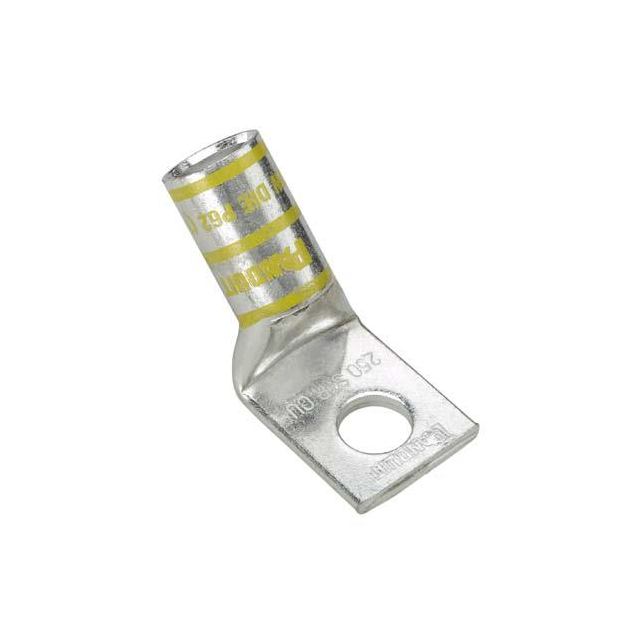

Panduit Corp Pan-Lug™ LCA300-58H-X is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a 5/8" stud size and is rated for 300MCM (kcmil) wire gauge, utilizing a barrel termination for secure crimping. The overall width is 1.190" (30.23mm) with a tab thickness of 0.160" (4.06mm). Mounting is supported via free hanging (in-line) or a 45° angle configuration. This terminal connector is suitable for use in power distribution, industrial automation, and heavy equipment industries, where robust and reliable electrical connections are critical. Packaged in bulk, the LCA300-58H-X provides a durable solution for demanding electrical infrastructure.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Single Stud Hole |
