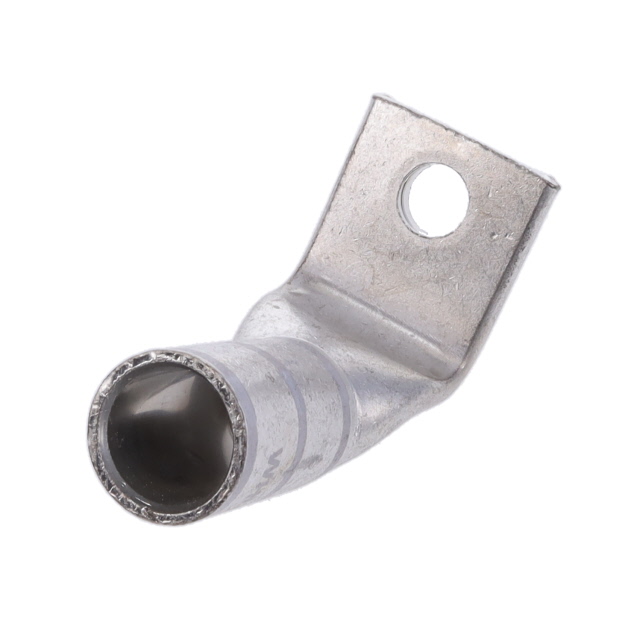

LCA300-38F-X
CONN TERM RECT TONG 300 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCA300-38F-X is a non-insulated, rectangular tongue terminal connector designed for 300 kcmil wire gauge. This component features a single stud hole with a 3/8 stud size and a tab thickness of 0.160 inches (4.06mm). The termination method is crimp, utilizing a barrel design. With an overall width of 1.190 inches (30.23mm), this terminal is suitable for free hanging (in-line) or right-angle mounting configurations. It is commonly employed in power distribution, electrical infrastructure, and heavy equipment manufacturing industries. The LCA300-38F-X is provided in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Single Stud Hole |
