LCA3/0-38-T
CONN TERM RECT TONG 3/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

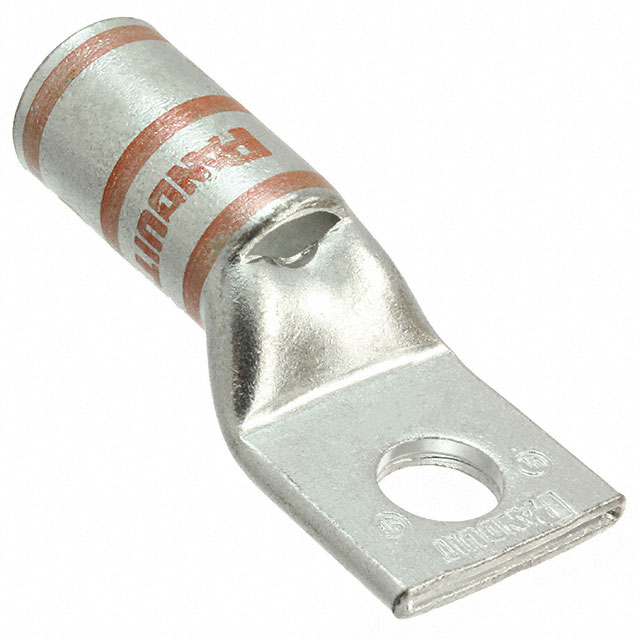

Panduit Corp Pan-Lug™ LCA3-0-38-T, a non-insulated rectangular tongue terminal, is engineered for robust electrical connections. This component accommodates 3/0 AWG conductor size with a 3/8 stud mounting. Featuring a single stud hole terminal style, it is designed for crimp barrel termination. The overall length is 2.330 inches (59.18mm) with an outer width of 0.960 inches (24.38mm) and a tab thickness of 0.130 inches (3.30mm). The LCA3-0-38-T is suitable for free hanging, in-line mounting configurations. This terminal is commonly utilized in power distribution, renewable energy systems, and industrial automation applications where reliable termination of heavy gauge conductors is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.330"" (59.18mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
