LCA3/0-12H-X
CONN TERM RECT TONG 3/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

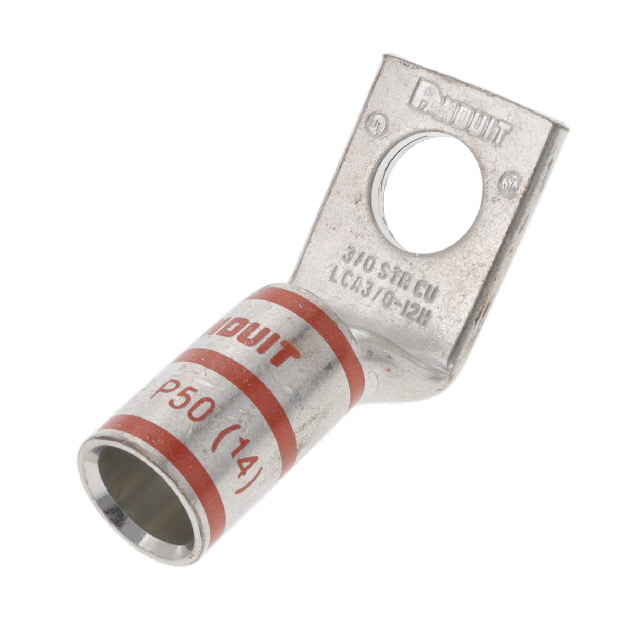

Panduit Corp Pan-Lug™ LCA3-0-12H-X is a non-insulated rectangular tongue terminal connector designed for reliable electrical connections. This component accommodates 3/0 AWG wire gauge with a 1/2 stud size and a tab thickness of 0.130". The terminal style features a single stud hole, and termination is achieved via crimping onto the barrel. Its outer edges measure 0.960" in width. The LCA3-0-12H-X is suitable for free-hanging (in-line) mounting or at a 45° angle. This connector is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
