LCA250-56F-X
CONN TERM RECT TONG 250MCM #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

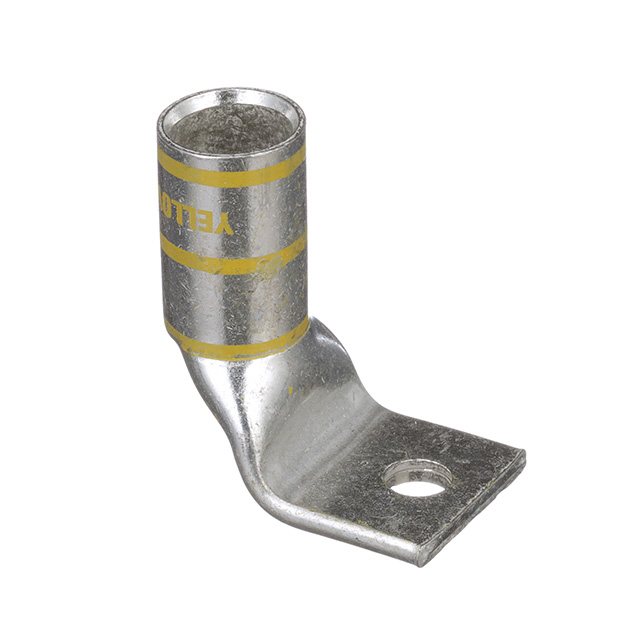

Panduit Corp's Pan-Lug™ LCA250-56F-X is a non-insulated, rectangular tongue, single stud hole terminal connector designed for 250 kcmil wire gauge. This component features a 5/16 stud size with a tab thickness of 0.140 inches (3.56mm) and an outer width of 1.170 inches (29.72mm). The termination method is crimp, utilizing a barrel design. Mounting is supported in a free hanging (in-line) or right angle configuration. This terminal connector is commonly utilized in power distribution, industrial automation, and renewable energy applications. The LCA250-56F-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
