LCA250-14-X
CONN TERM RECT TONG 250 MCM #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

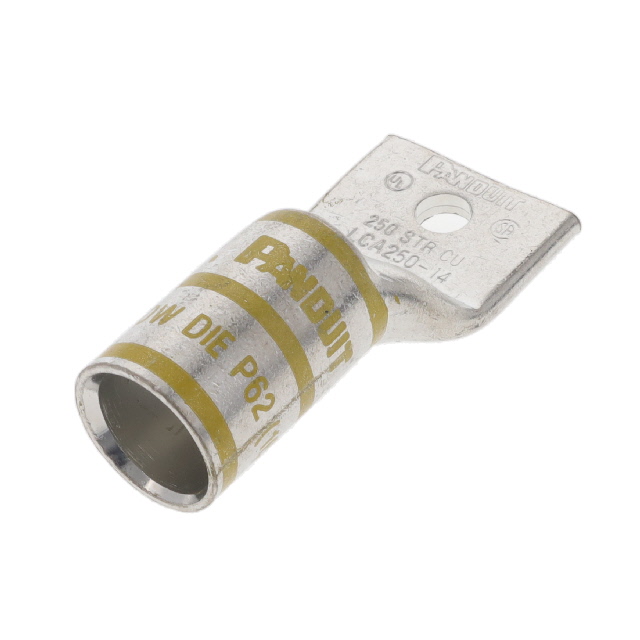

Panduit Corp LCA250-14-X is a non-insulated Pan-Lug™ series rectangular tongue terminal connector designed for robust electrical connections. This component features a single stud hole termination for a 1/4" stud size and accommodates 250MCM (kcmil) wire gauge, utilizing a crimp barrel termination method. Its overall length is 2.460" (62.48mm) with a width of 1.170" (29.72mm) and a tab thickness of 0.140" (3.56mm). The mounting type is free hanging (in-line). This terminal is commonly employed in power distribution, industrial automation, and heavy equipment applications where reliable high-current connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.460"" (62.48mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
