LCA2-12F-Q
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

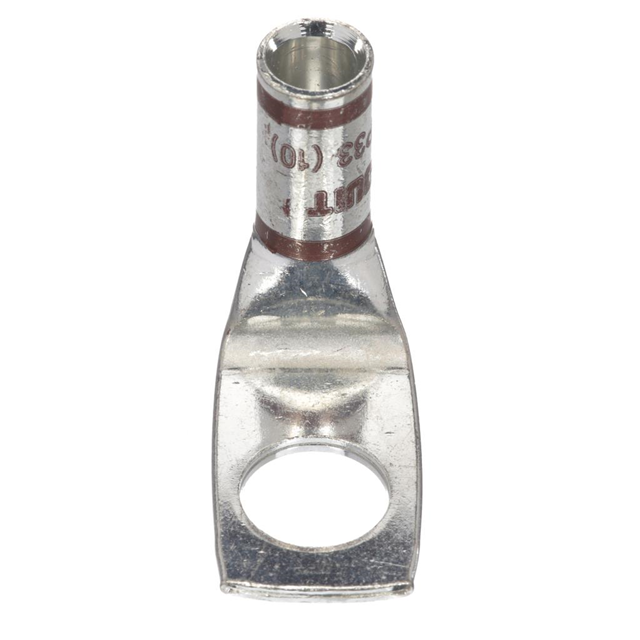

Panduit Corp Pan-Lug™ LCA2-12F-Q is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accepts 2 AWG wire gauge and features a 1/2 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal style is a single stud hole, and it is terminated via a crimp connection to the barrel. With an overall width of 0.750 inches (19.05mm), the LCA2-12F-Q is suitable for applications requiring secure, high-current connections. Mounting options include free hanging (in-line) and right angle configurations, catering to diverse installation needs. This component is commonly utilized in power distribution, electrical infrastructure, and industrial automation systems where reliable termination is critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Single Stud Hole |
