LCA2/0-00-X
CONN TERM RECT TONG 2/0 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

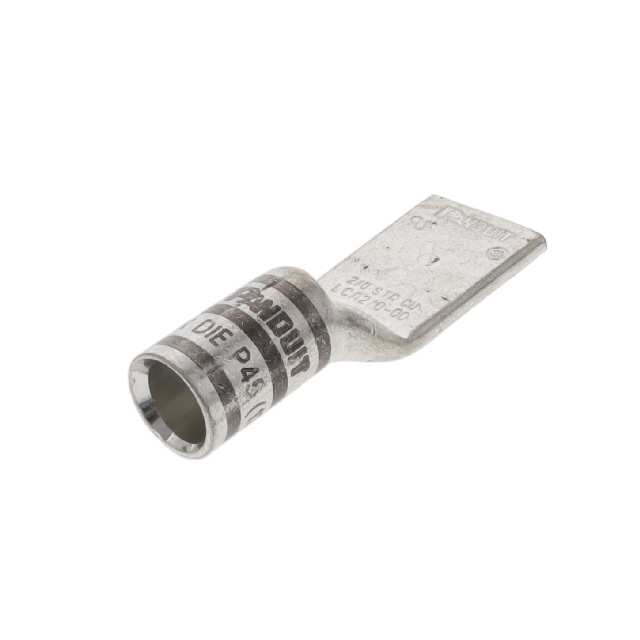

Panduit Corp Pan-Lug™ terminal connector for 2/0 AWG wire. This non-insulated, rectangular tongue terminal features a crimp barrel termination. It has an overall length of 2.390 inches (60.71mm) and a tab thickness of 0.130 inches (3.30mm). The outer edges measure 0.850 inches (21.59mm) wide. Designed for a free-hanging, in-line mounting configuration, this component is suitable for demanding industrial applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 2.390"" (60.71mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | No Stud Hole |
