LCA10-10H-L
CONN TERM RECT TONG 10-14AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

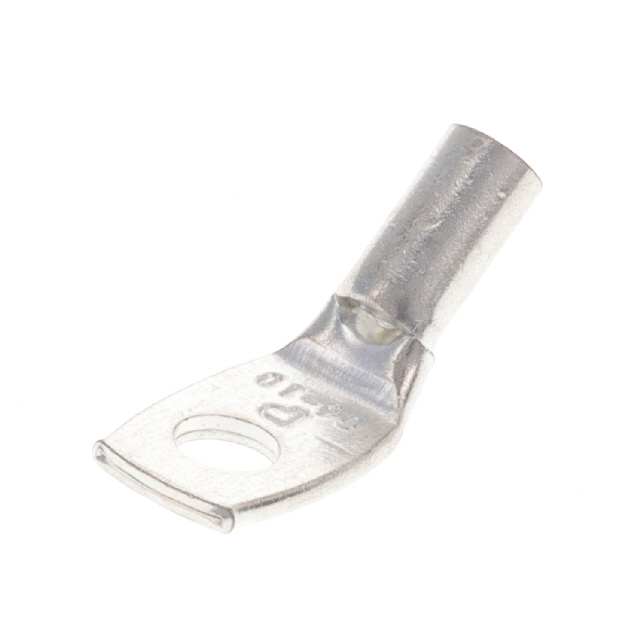

Panduit Corp LCA10-10H-L is a non-insulated, rectangular tongue terminal from the Pan-Lug™ series. This component is designed for crimp termination of wire gauges from 10 to 14 AWG. It features a single stud hole with a 10 stud size and a tab thickness of 0.060" (1.52mm). The overall width of the outer edges is 0.380" (9.65mm). The mounting type is free hanging (in-line) with a 45° angle capability. This terminal is commonly employed in power distribution and electrical connection applications across industries such as industrial automation, telecommunications, and renewable energy. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 10-14 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Single Stud Hole |
