LCA1-00-E
CONN TERM RECT TONG 1 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

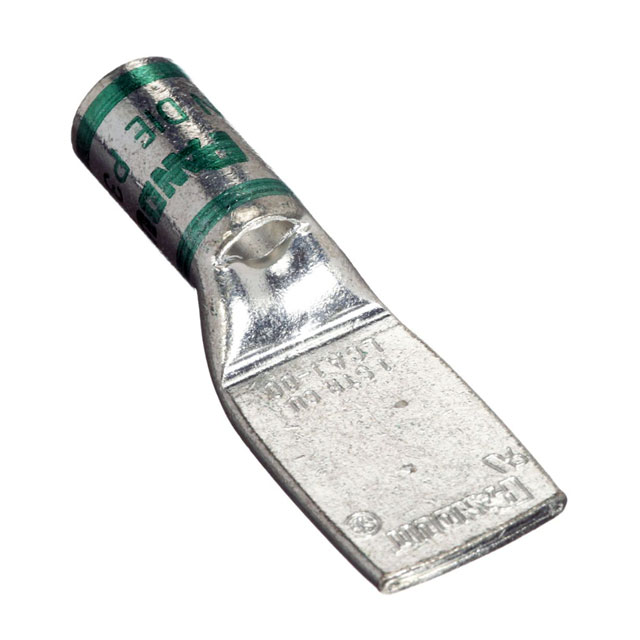

Panduit Corp Pan-Lug™ LCA1-00-E is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a crimp termination style with a barrel construction and a tab thickness of 0.090 inches (2.29mm). The overall length is 2.230 inches (56.64mm), with an outer edge width of 0.750 inches (19.05mm). It is suitable for free hanging (in-line) mounting and is provided in bulk packaging. This terminal is commonly utilized in power distribution and electrical infrastructure applications where robust and reliable connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 2.230"" (56.64mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | No Stud Hole |
