LCA1/0-14H-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

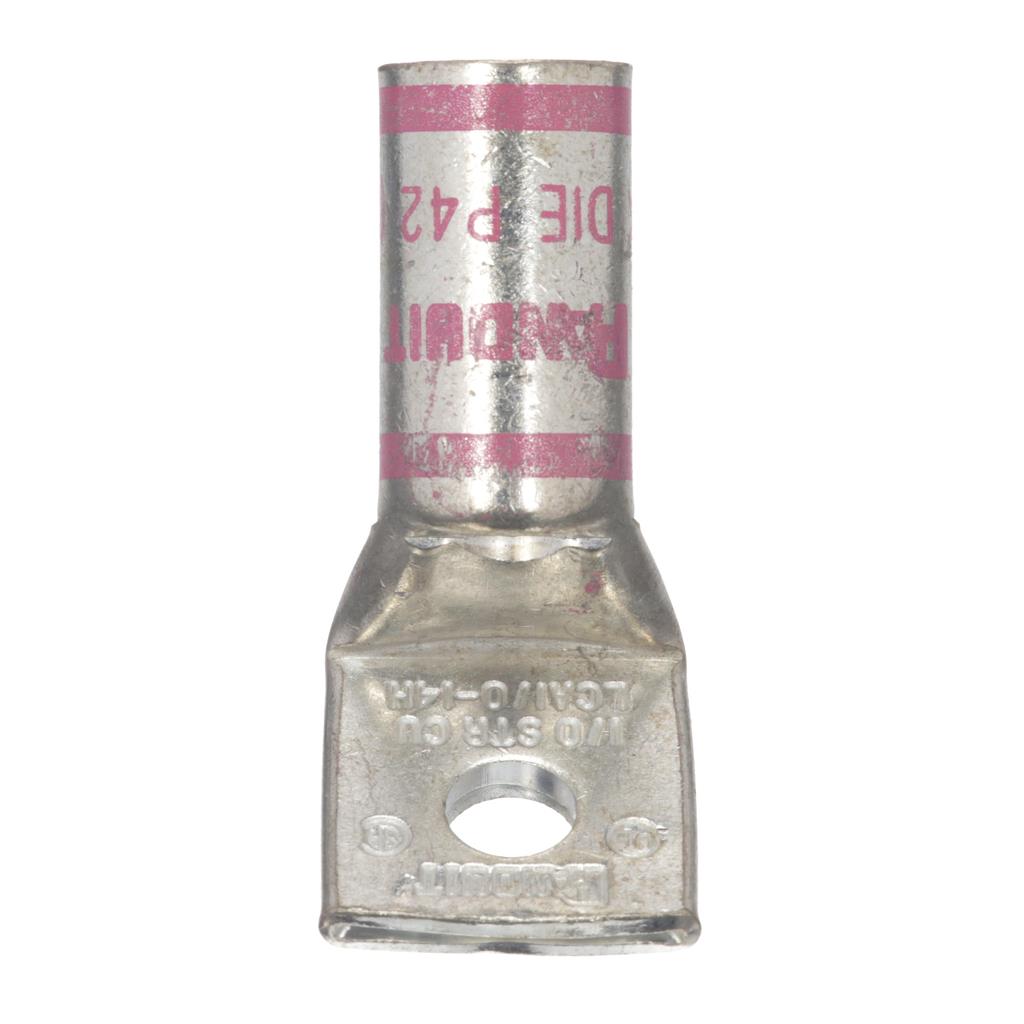

Panduit Corp Pan-Lug™ LCA1-0-14H-X is a non-insulated, rectangular tongue terminal connector designed for single stud hole termination. This component accommodates 1/0 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.120 inches. The terminal offers a 45° angle mounting option for versatile inline configurations. Its outer edges measure 0.760 inches in width. This crimp-style terminal is suitable for industrial and power distribution applications requiring robust electrical connections. The LCA1-0-14H-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
