LCA1/0-00-X
CONN TERM RECT TONG 1/0 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

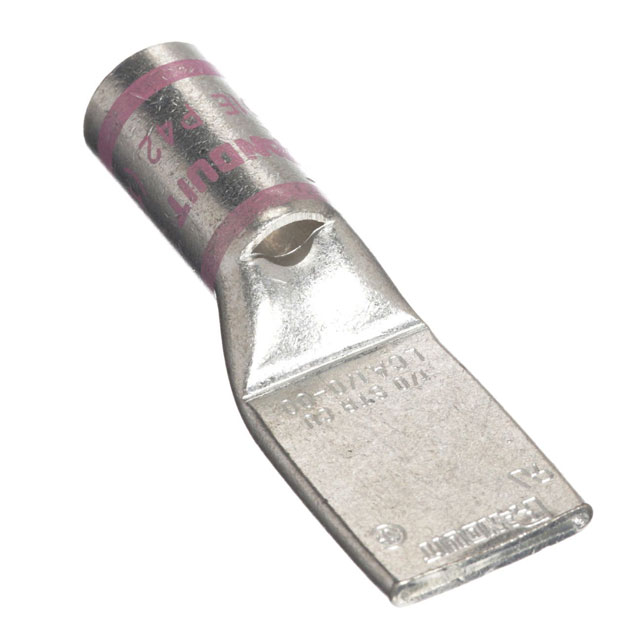

Panduit Corp Pan-Lug™ LCA1-0-00-X is a non-insulated, rectangular tongue terminal designed for 1/0 AWG wire. This component features a crimp barrel termination and a tab thickness of 0.120 inches (3.05mm). The overall length is 2.310 inches (58.67mm) with an outer edge width of 0.800 inches (20.32mm). The mounting type is free hanging for in-line applications. This terminal is typically utilized in industrial power distribution, heavy equipment, and automotive manufacturing sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 2.310"" (58.67mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | No Stud Hole |
