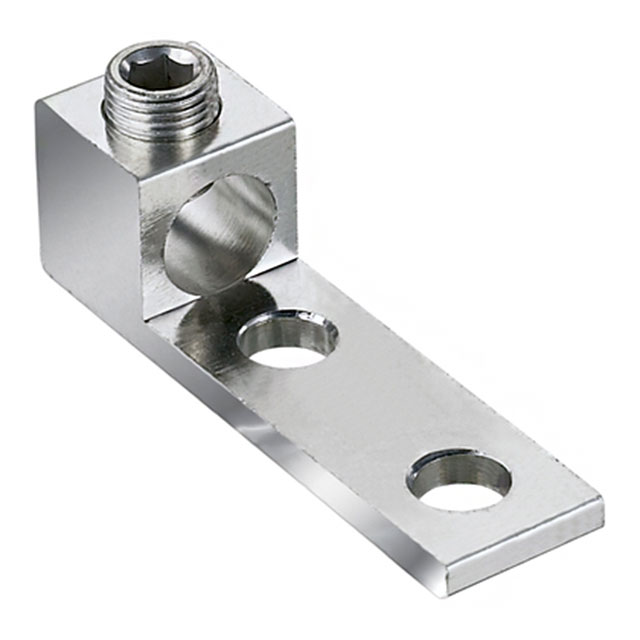

LAMLB1000-12-3
CONN TERM RECT LUG 500-1000MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp LAMB Series LAMLB1000-12-3 is a non-insulated, rectangular lug terminal connector designed for grounding applications. This component features two stud holes with a 1/2 stud size and a tab thickness of 0.560 inches. It is engineered to accommodate wire gauges from 500 to 1000 MCM (kcmil). The overall length of the terminal is 6.190 inches (157.23mm), and it offers a free hanging (in-line) mounting type. This terminal is suitable for high-current industrial power distribution, grounding systems, and heavy-duty electrical connections. The LAMLB1000-12-3 is supplied in bulk packaging.
Additional Information
Series: LAMBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500-1000MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 6.190"" (157.23mm) |
| Termination | Screw |
| Width - Outer Edges | - |
| Tab Thickness | 0.560"" (14.22mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
Clients Also Buy

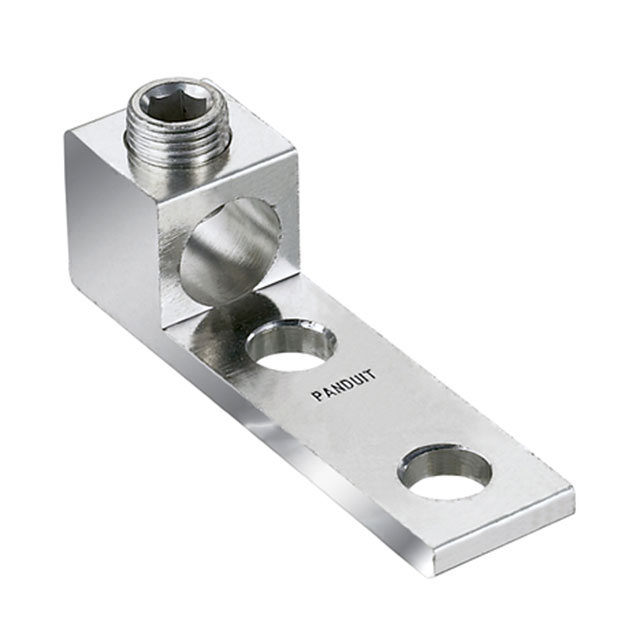

LAMB350-12-6Y
CONN TERM RECT LUG 6 AWG #1/2

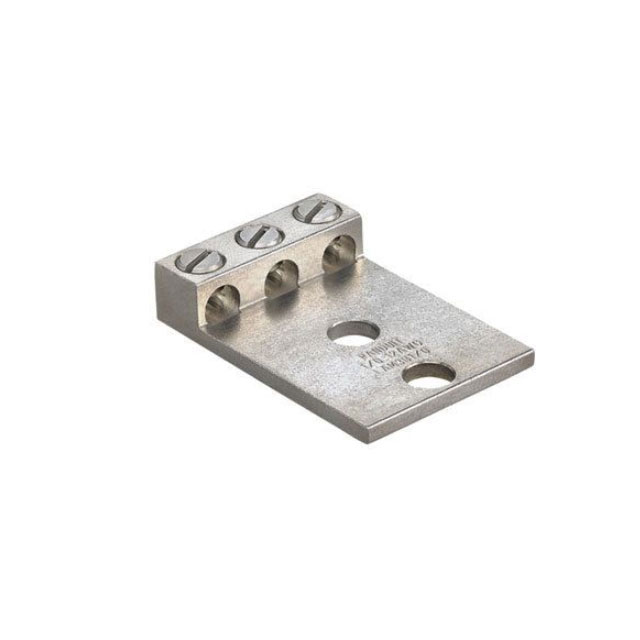

LAMB600-12-3Y
