LAM4D350-12-1Y
CONN TERM RECT LUG 6 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

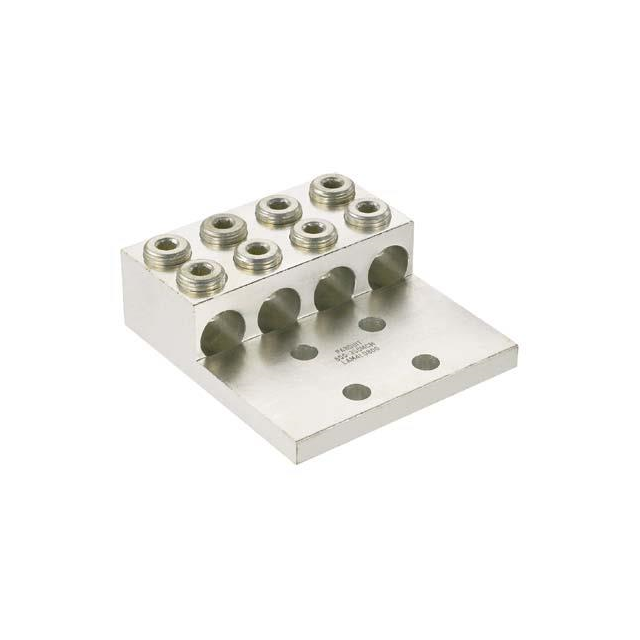

Panduit Corp LAM4D350-12-1Y is a non-insulated, rectangular lug terminal connector designed for grounding applications. This component from the LAM4D series features a 1/2 stud size with four stud holes and accepts wire gauges from 350MCM (kcmil) down to 6 AWG. The termination method is screw, and the overall length is 4.500" (114.30mm) with an outer width of 4.720" (119.89mm). Tab thickness measures 0.310" (7.87mm). This in-line, free hanging lug is suitable for industrial power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: LAM4DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | 4 Cable Entries, With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 350MCM (kcmil)-6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.500"" (114.30mm) |
| Termination | Screw |
| Width - Outer Edges | 4.720"" (119.89mm) |
| Tab Thickness | 0.310"" (7.87mm) |
| Terminal Style | Four Stud Holes |
