LAM2B600-12-3Y
CONN TERM RECT LUG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp LAM2B series terminal lug, part number LAM2B600-12-3Y, is a non-insulated, rectangular lug designed for grounding applications. This component supports wire gauges from 600MCM (kcmil) down to 2 AWG and features a 1/2 stud size for secure mounting. The LAM2B600-12-3Y offers two cable entries and a screw termination for reliable connection. Its overall length is 5.500 inches (139.70mm) with an outer width of 2.850 inches (72.39mm) and a tab thickness of 0.380 inches (9.65mm). This terminal is manufactured with a free hanging (in-line) mounting type. It is commonly utilized in power distribution and industrial control systems. The LAM2B600-12-3Y is supplied in bulk packaging.
Additional Information
Series: LAM2BRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | 2 Cable Entries, With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 600MCM (kcmil)-2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 5.500"" (139.70mm) |
| Termination | Screw |
| Width - Outer Edges | 2.850"" (72.39mm) |
| Tab Thickness | 0.380"" (9.65mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
Clients Also Buy

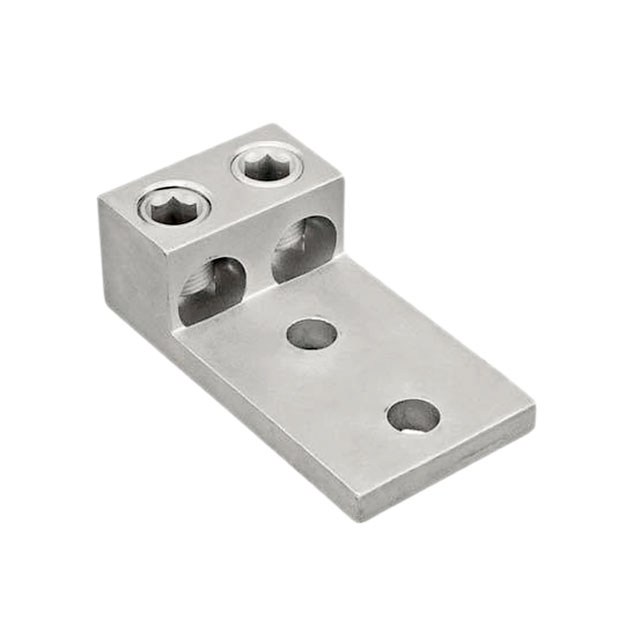

LAM2B350-12-3Y
CONN TERM RECT LUG 6 AWG #1/2

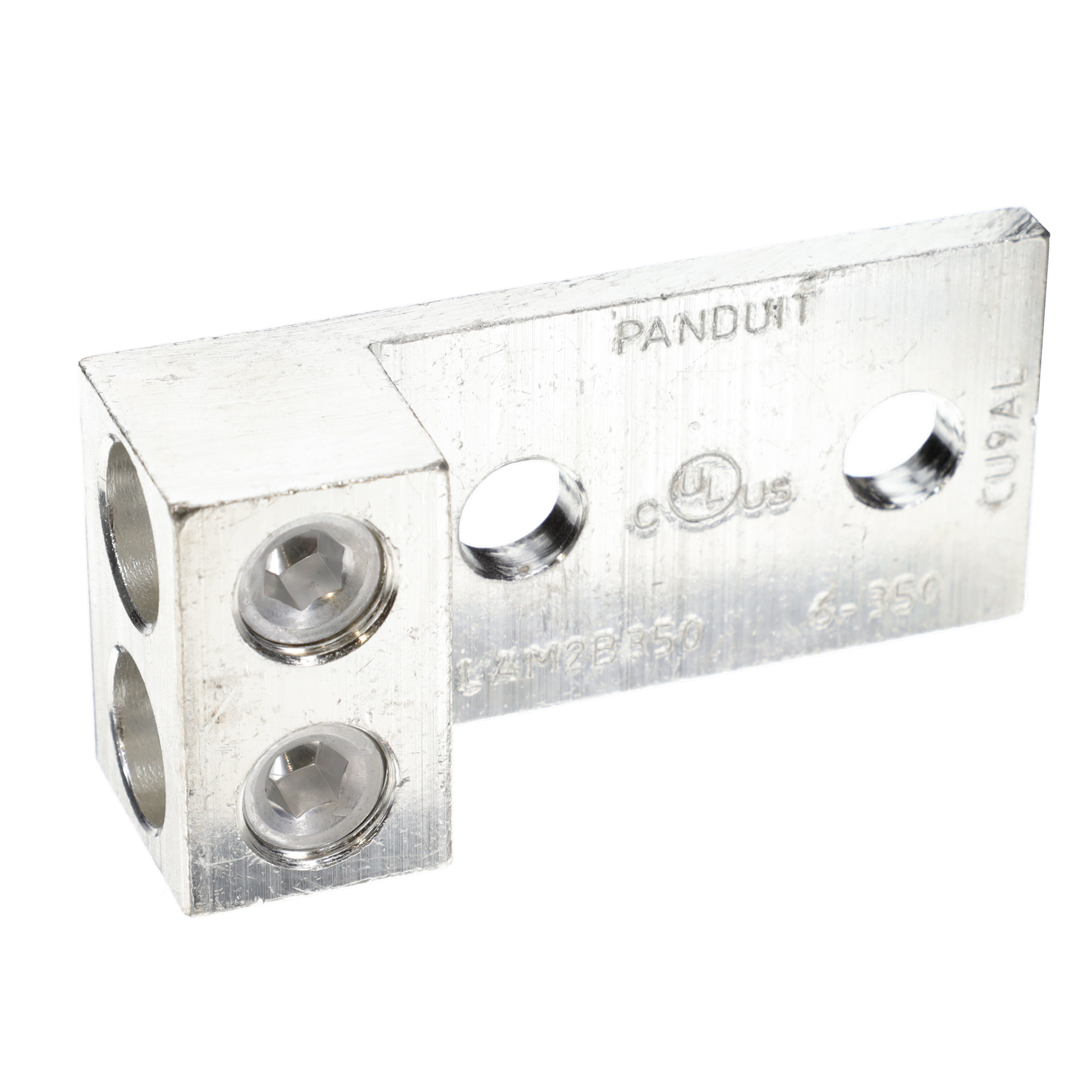

LAM2B350-12-8
