LAM2A350-12-6Y
CONN TERM RECT LUG 6 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

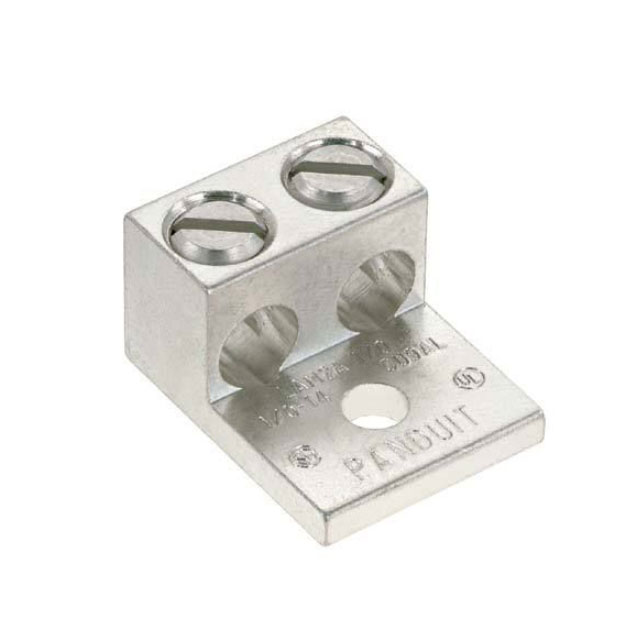

Panduit Corp LAM2A series LAM2A350-12-6Y is a non-insulated, rectangular lug terminal for grounding applications. This component features a single stud hole designed for a 1/2" stud size, with a tab thickness of 0.250". It supports wire gauges from 350MCM (kcmil) down to 6 AWG, accommodating multiple cable entries. The terminal is constructed for screw termination and offers a free-hanging (in-line) mounting type. Overall dimensions include a length of 2.870" (72.90mm) and a width of 1.730" (43.94mm). This Panduit Corp lug is utilized in power distribution, industrial automation, and electrical infrastructure applications. Supplied in bulk packaging.
Additional Information
Series: LAM2ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | 2 Cable Entries, With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 350MCM (kcmil)-6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 2.870"" (72.90mm) |
| Termination | Screw |
| Width - Outer Edges | 1.730"" (43.94mm) |
| Tab Thickness | 0.250"" (6.35mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
Clients Also Buy

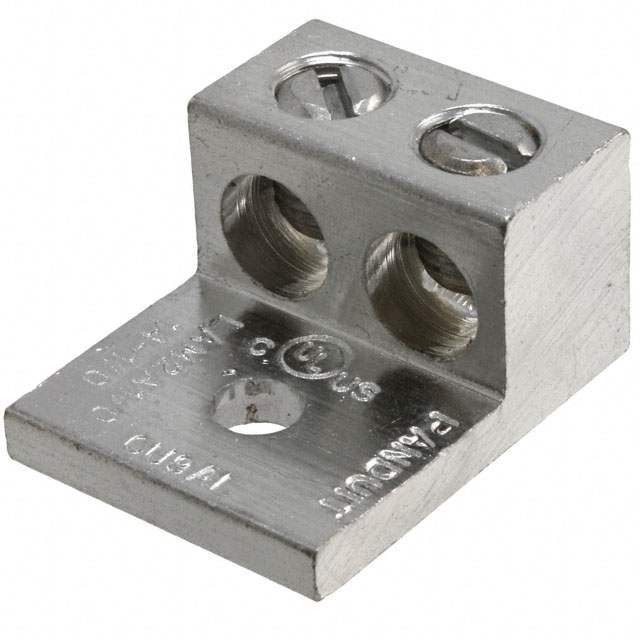

LAM2A1/0-14-6Y
CONN TERM RECT LUG 1/0-14AWG 1/4

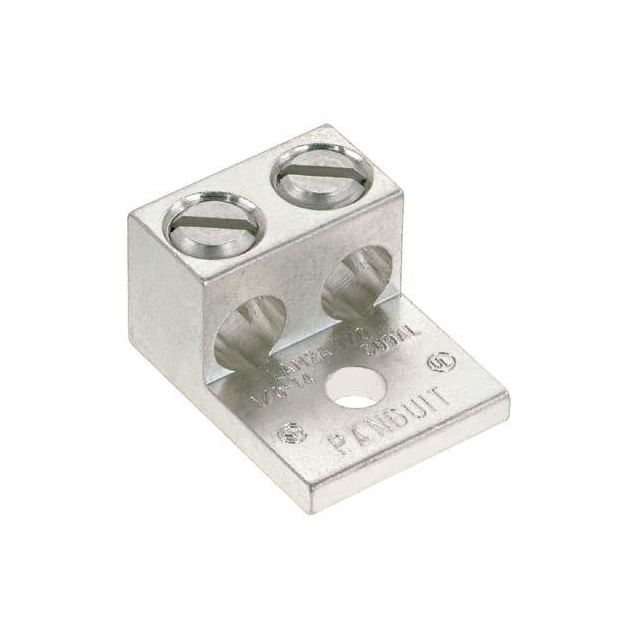

LAM2A1000-58-6Y
CONN TERM RECT LUG 500-1000MCM

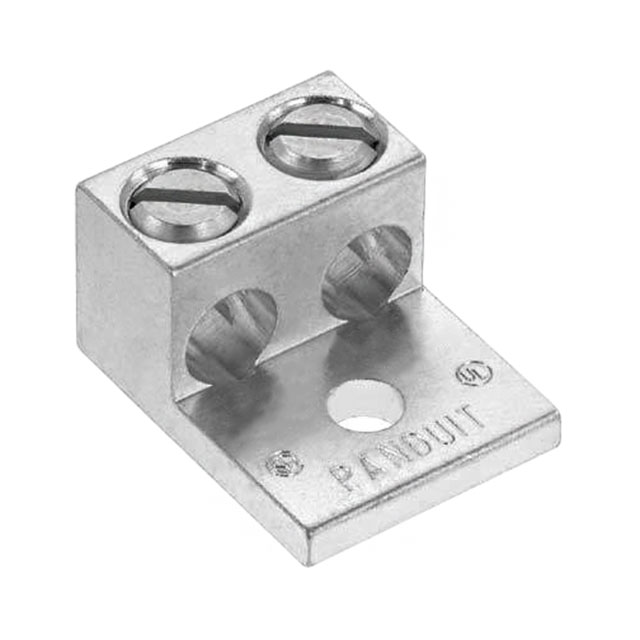

LAM2A2/0-14-6Y
