LAB800-12-1
CONN TERM RECT TONG 800 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

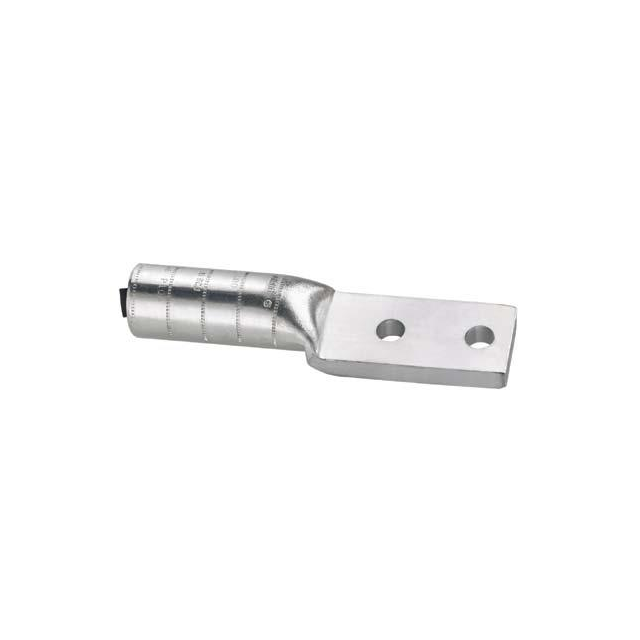

Panduit Corp LAB Series terminal connector, part number LAB800-12-1. This non-insulated, rectangular tongue terminal features a two-stud design for 800MCM (kcmil) wire gauge and a 1/2 stud size. The crimp barrel termination ensures a secure connection, with overall dimensions including an 8.300" (210.82mm) length and 1.720" (43.69mm) width. The 0.590" (14.99mm) tab thickness provides robust mechanical integrity. Designed for free hanging (in-line) mounting, this gel-filled component is suitable for high-power electrical applications across industries such as power distribution, industrial automation, and renewable energy. Packaged in bulk.
Additional Information
Series: LABRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Gel Filled |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 800MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 8.300"" (210.82mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.720"" (43.69mm) |
| Tab Thickness | 0.590"" (14.99mm) |
| Terminal Style | Two Stud Holes |
