LAB750-12-1R
ALUMINUM COMPRESSION LUG, 2 HOLEManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

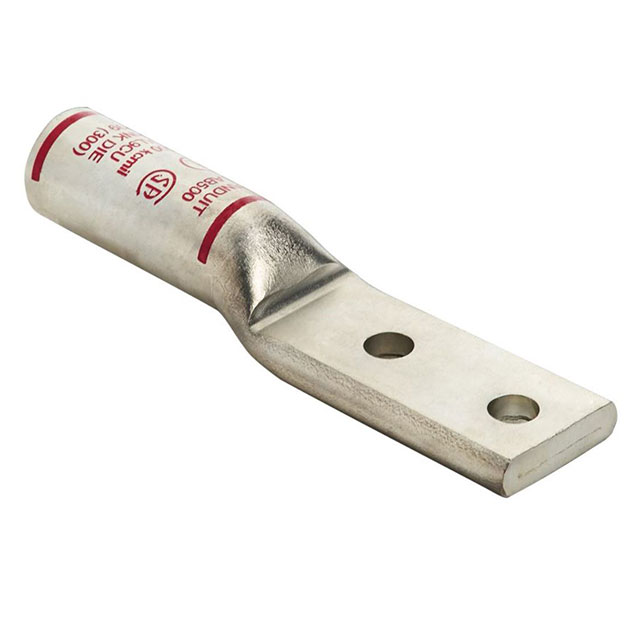

Panduit Corp LAB Series aluminum compression lug, part number LAB750-12-1R, is designed for high-current grounding applications. This non-insulated, rectangular lug features two stud holes for 1/2 stud mounting and accommodates wire gauges up to 750MCM (kcmil). The terminal type is a grounding lug with a barrel termination for crimping. With an overall length of 8.250" (209.55mm) and a width of 1.740" (44.20mm), this lug provides robust connectivity. Its construction is suitable for industrial power distribution, telecommunications infrastructure, and renewable energy systems where reliable grounding is critical. The component is supplied in bulk packaging and features a black color.
Additional Information
Series: LABRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 8.250"" (209.55mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.740"" (44.20mm) |
| Tab Thickness | 0.540"" (13.72mm) |
| Terminal Style | Two Stud Holes |
