HLA13-1-90-5
CONN TERM RECT LUG 2/0-1 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

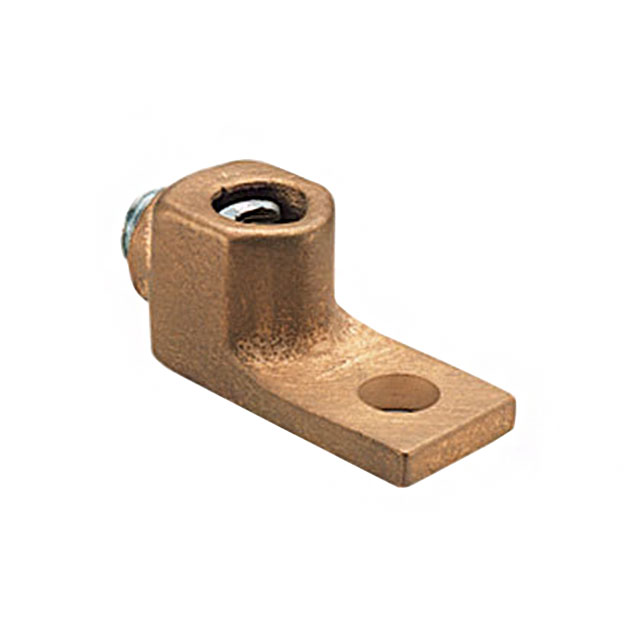

Panduit Corp HLA Series terminal lug, part number HLA13-1-90-5, is a non-insulated, rectangular lug connector designed for grounding applications. This component accommodates wire gauges from 2/0 to 1 AWG, featuring a single stud hole for termination via screw. With an overall length of 2.380 inches (60.45mm) and a width of 0.810 inches (20.57mm), it offers a tab thickness of 0.220 inches (5.59mm). The mounting type is free hanging (in-line). This terminal lug is commonly utilized in power distribution, industrial automation, and electrical infrastructure sectors. It is supplied in bulk packaging.
Additional Information
Series: HLARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0-1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | - |
| Length - Overall | 2.380"" (60.45mm) |
| Termination | Screw |
| Width - Outer Edges | 0.810"" (20.57mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
