HL1-25-X
CONN TERM RECT LUG 3-14 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp HL Series HL1-25-X is a non-insulated, rectangular lug terminal connector designed for grounding applications. This component features a single stud hole with a 1/4" stud size and a tab thickness of 0.190". It is engineered to accommodate wire gauges from 3 to 14 AWG and terminates via a screw. The overall length of the Panduit Corp HL1-25-X is 1.380" with an outer width of 0.560". This terminal lug is suitable for free hanging (in-line) mounting. Its robust construction makes it a reliable choice for power distribution and grounding solutions across various industrial and electrical infrastructure applications. The component is supplied in bulk packaging.
Additional Information
Series: HLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3-14 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.380"" (35.05mm) |
| Termination | Screw |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.190"" (4.83mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
Clients Also Buy

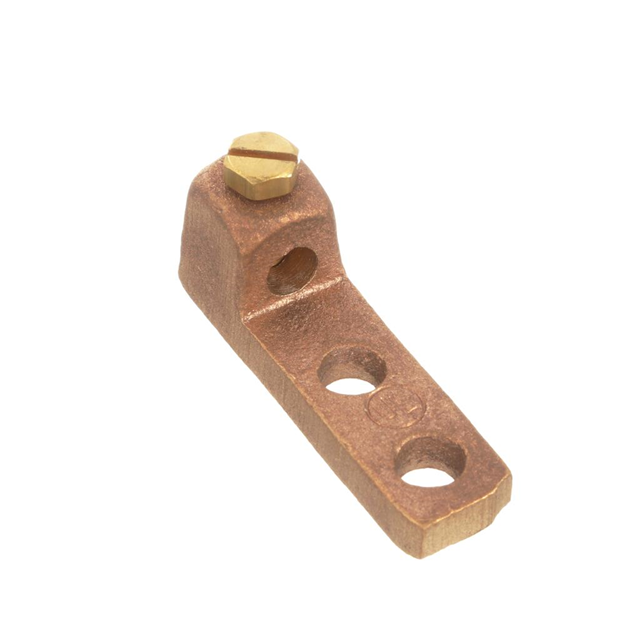

HL1-2-25-X
CONN TERM RECT LUG 8-14 AWG #1/4
HL13-2-5
CONN TERM RECT LUG 2/0-1AWG #3/8

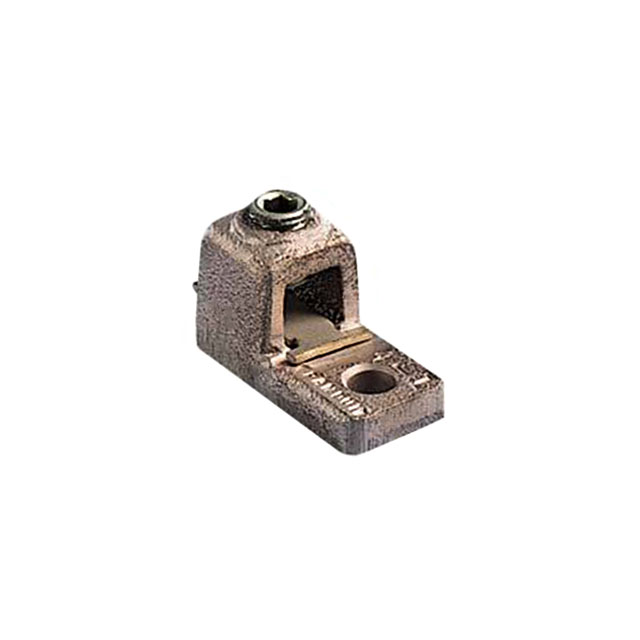

HL21-1-5
