H2L13-2N-2
CONN TERM RECT LUG 2/0-1AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp H2L-2N-2 is a non-insulated, rectangular lug terminal connector from the H2L-2N series. This component is designed for grounding applications and supports wire gauges from 2/0 to 1 AWG. It features a 1/2 stud size and a tab thickness of 0.220 inches. The terminal style includes two stud holes, with termination achieved via screw. The overall length is 4.000 inches, and the outer width is 1.630 inches. Mounting is free hanging (in-line). This terminal connector is suitable for use in power distribution and industrial automation systems. It is supplied in bulk packaging.
Additional Information
Series: H2L-2NRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | 2 Cable Entries, With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0-1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.000"" (101.60mm) |
| Termination | Screw |
| Width - Outer Edges | 1.630"" (41.40mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
Clients Also Buy

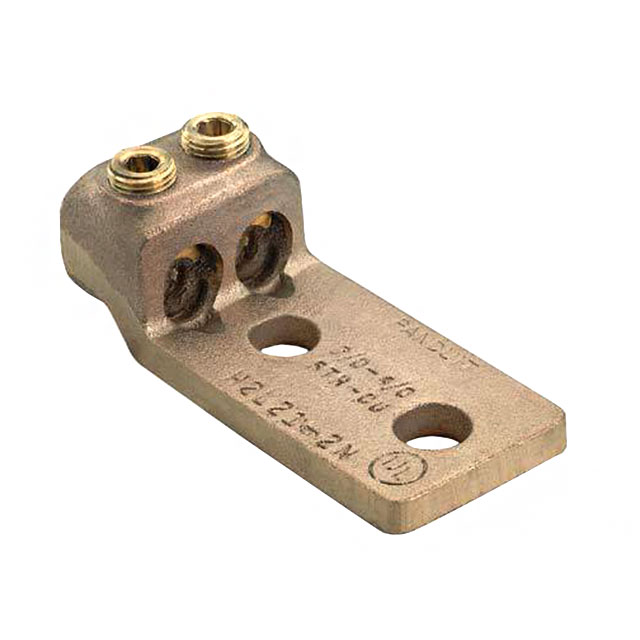

H2L21-2N-2
