CX70-14-CY
CONN TERM RECT LUG 4-14 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

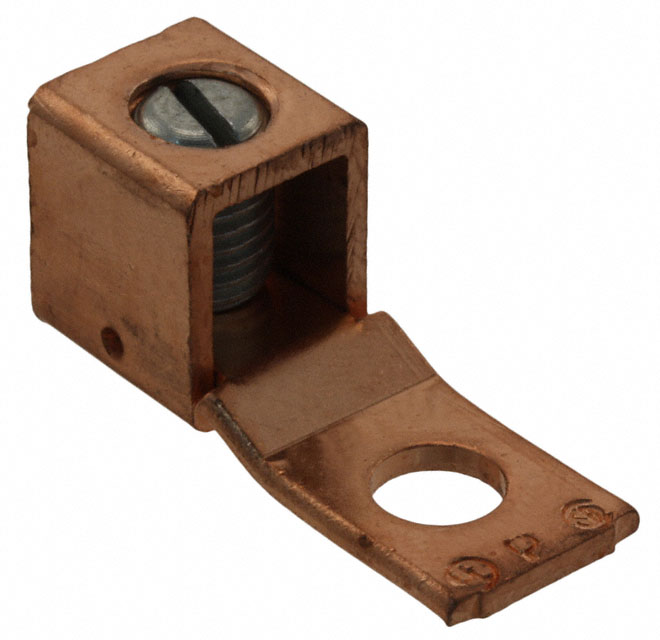

Panduit Corp CX70-14-CY is a non-insulated, rectangular lug terminal designed for grounding applications. This component supports wire gauges from 4 to 14 AWG and features a 1/4 stud for secure termination. The terminal style is single stud hole, with a tab thickness of 0.080 inches (2.03mm) and an outer width of 0.500 inches (12.70mm). Termination is achieved via screw. This lug is suitable for free hanging (in-line) mounting configurations. It is commonly utilized in power distribution, industrial automation, and electrical infrastructure sectors where reliable grounding is critical. The Panduit Corp CX series lug is supplied in bulk packaging.
Additional Information
Series: CXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4-14 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Screw |
| Width - Outer Edges | 0.500"" (12.70mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Single Stud Hole |
