CX125-14-QY
CONN TERM RECT LUG 1/0-4AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

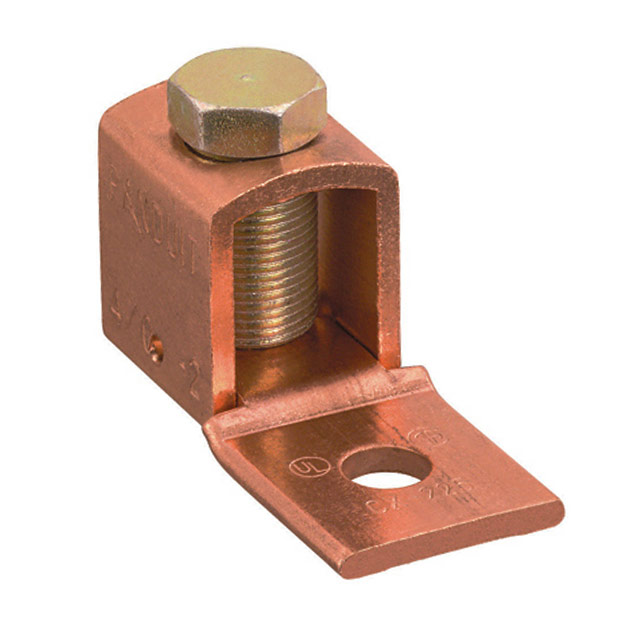

Panduit Corp CX125-14-QY is a non-insulated, rectangular lug terminal connector designed for grounding applications. This component features a single stud hole with a 1/4" stud size and a tab thickness of 0.130" (3.30mm). It is engineered for wire gauges ranging from 1/0 AWG to 4 AWG, with a termination method utilizing a screw. The overall width is 0.620" (15.75mm). This Panduit Corp CX series lug is suitable for bulk packaging and is commonly employed in industrial automation, power distribution, and telecommunications infrastructure, where reliable grounding is critical.
Additional Information
Series: CXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Screw |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
