CS35-36SL-CY
CONN TERM RECT LUG 6-14AWG #3/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

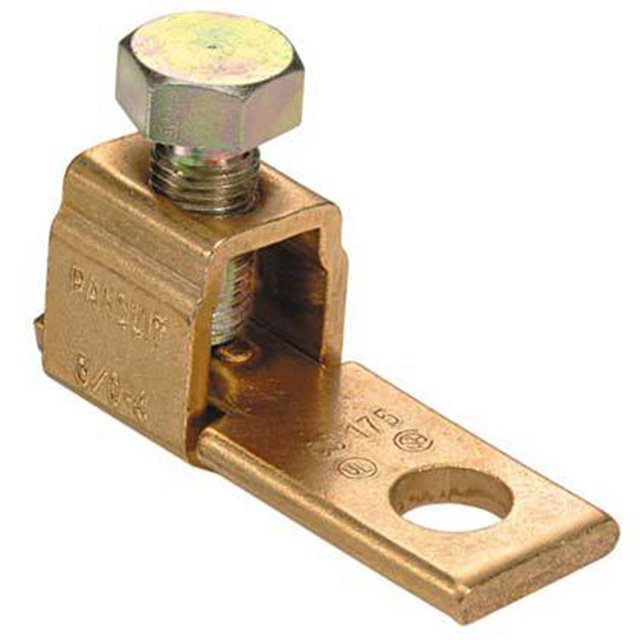

Panduit Corp CS Series terminal lug, part number CS35-36SL-CY, is a non-insulated, single stud hole rectangular lug designed for grounding applications. This component accommodates wire gauges from 6 to 14 AWG and features a 3/16 stud size with a tab thickness of 0.071 inches. The overall length is 1.140 inches, and the outer width is 0.382 inches. Terminated via screw, this lug is suitable for free hanging (in-line) mounting. It is supplied in bulk packaging. Applications for this terminal lug include power distribution and electrical infrastructure in industrial automation and energy sectors.
Additional Information
Series: CSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6-14 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 3/16 Stud |
| Length - Overall | 1.140"" (28.96mm) |
| Termination | Screw |
| Width - Outer Edges | 0.382"" (9.70mm) |
| Tab Thickness | 0.071"" (1.80mm) |
| Terminal Style | Single Stud Hole |
