CS175-38HK-QY
CONN TERM RECT LUG 3/0-4AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

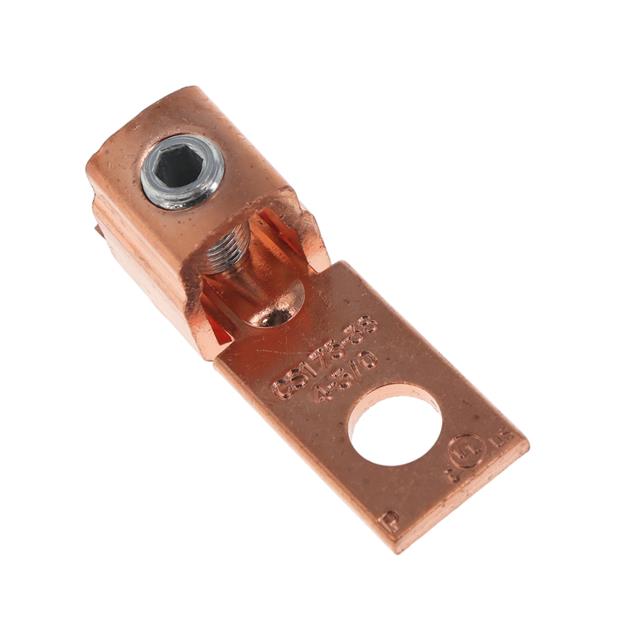

Panduit Corp CS series terminal connector, part number CS175-38HK-QY. This non-insulated, rectangular lug connector is designed for grounding applications with wire gauges from 3/0 to 4 AWG. It features a single stud hole for termination with a 3/8 stud size and a 0.160" tab thickness. The overall length is 2.190" (55.63mm) with an outer width of 0.750" (19.05mm). Termination is achieved via screw. This component offers a free hanging (in-line) mounting type and is supplied in bulk packaging. It is commonly utilized in power distribution and electrical connection systems across industrial automation and telecommunications sectors.
Additional Information
Series: CSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.190"" (55.63mm) |
| Termination | Screw |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Single Stud Hole |
