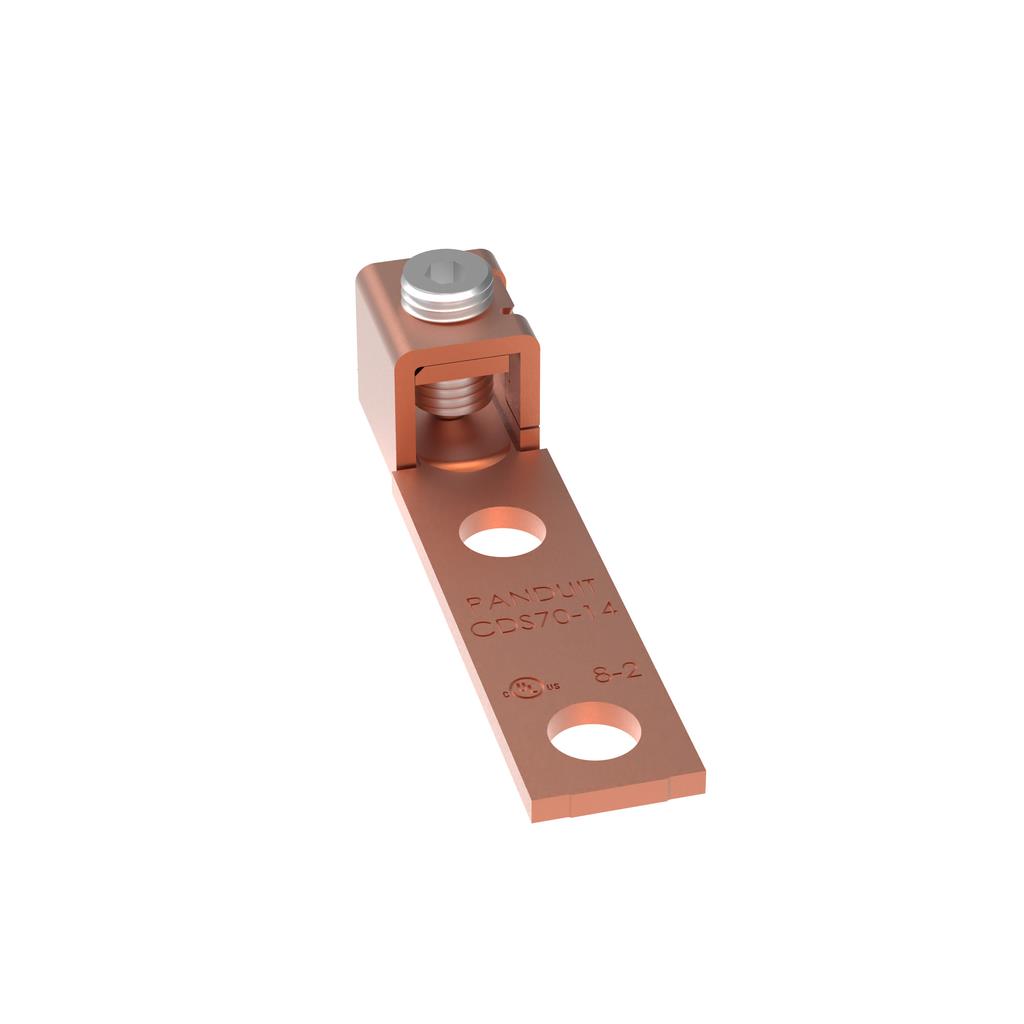

CDS70-14-Q
COPPER MECHANICAL LUG, 2 HOLE, 1Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Terminal Connector Rectangular Lug, Grounding 2-8 AWG 1/4 Stud
Additional Information
Series: CDSRoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2-8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.290"" (58.17mm) |
| Termination | Screw |
| Width - Outer Edges | 0.500"" (12.70mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
