CB175-38-QY
CONN TERM RECT LUG 3/0-4AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

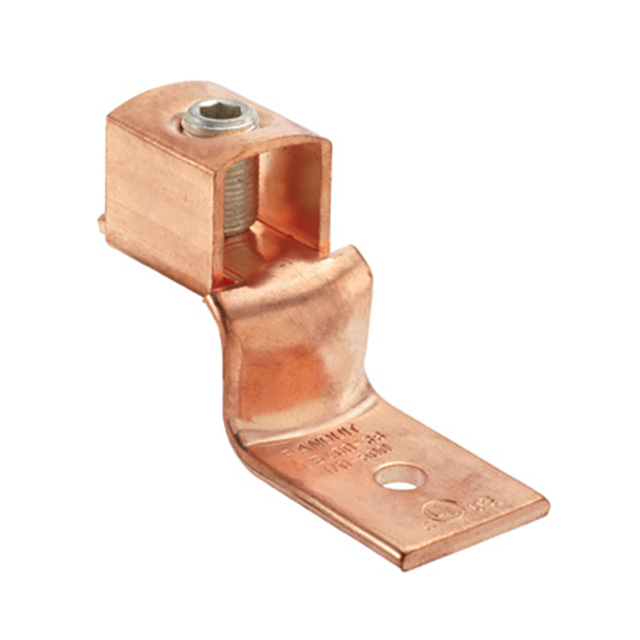

Panduit Corp CB Series CB175-38-QY is a non-insulated, rectangular lug terminal connector designed for grounding applications. This component features a single stud hole termination with a 3/8" stud size and accommodates wire gauges from 3/0 AWG to 4 AWG. The terminal style is a single stud hole, and it utilizes a screw termination method. Key physical dimensions include a tab thickness of 0.160" (4.06mm) and an outer width of 0.750" (19.05mm). This component is supplied in bulk packaging and is suitable for in-line mounting configurations. It finds application in power distribution and electrical grounding systems within industrial and telecommunications sectors.
Additional Information
Series: CBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Screw |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Single Stud Hole |
