FSTMMBL
PRE-POLISHED ST SIMPLEX CRIMP STManufacturer: Panduit Corp
Categories: Fiber Optic Connector Assemblies
Quality Control: Learn More

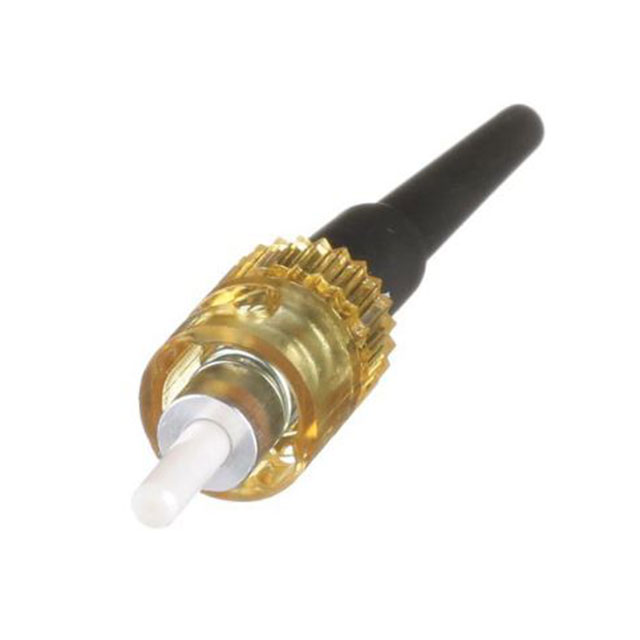

Panduit Corp FSTMMBL is a pre-polished ST simplex crimp connector designed for reliable fiber optic termination. This Opti-Crimp® series component features an ST plug connector with a bayonet lock fastening type for secure mating. Engineered for 125µm fiber cladding diameter and 62.5µm fiber core diameter, it supports Multimode OM1 applications. The connector is free-hanging (in-line) mountable and includes a black boot. This offering is packaged in a box. Applications for this component are prevalent in telecommunications and enterprise networking infrastructure where robust fiber optic connectivity is essential.
Additional Information
Series: Opti-Crimp®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Connector Type | Plug |
| Mounting Type | Free Hanging (In-Line) |
| Cable Diameter | 0.9mm |
| Fastening Type | Bayonet Lock |
| Mode | Multimode OM1 |
| Ingress Protection | - |
| Connector Style | ST |
| Simplex/Duplex | Simplex |
| Housing Color | - |
| Fiber Core Diameter | 62.5µm |
| Fiber Cladding Diameter | 125µm |
| Boot Color | Black |
